Russian SP14-070030 Type
SP14-070030 Type
Features
■ High energy storage and very low resistance
■ Storage temperature range:-55℃ to +125℃
■ Operating temperature range:-55℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

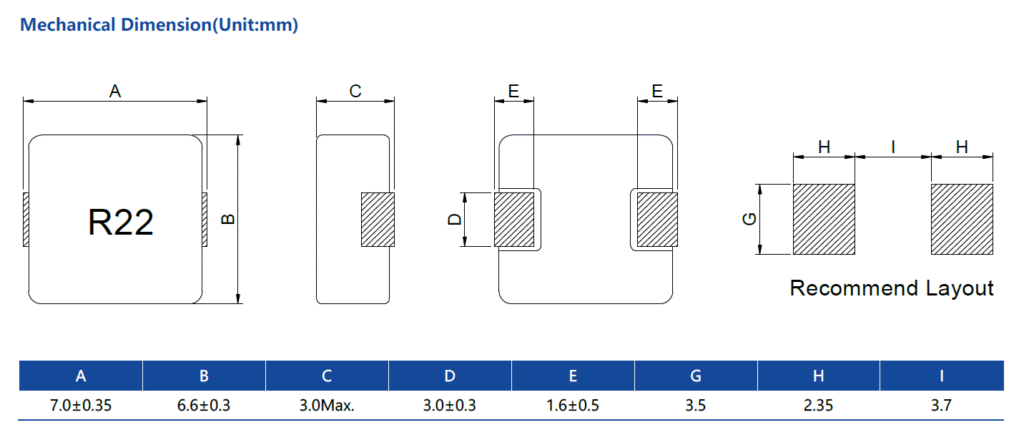

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP14-070030R22M | 0.22±20% | 2.5 | 3 | 34 | 24 | 130 |  |
| SP14-070030R24M | 0.24±20% | 2.6 | 3.1 | 28 | 23 | 120 | |
| SP14-070030R33M | 0.33±20% | 3 | 3.5 | 25 | 21 | 108 | |
| SP14-070030R47M | 0.47±20% | 3.5 | 4.1 | 20 | 18 | 90 | |
| SP14-070030R56M | 0.56±20% | 3.9 | 4.5 | 18 | 16.5 | 80 | |
| SP14-070030R68M | 0.68±20% | 4.8 | 5.3 | 17 | 16 | 69 | |
| SP14-070030R82M | 0.82±20% | 5.4 | 6 | 16 | 14 | 61 | |
| SP14-0700301R0M | 1.0±20% | 6.7 | 7.4 | 15 | 12 | 55 | |
| SP14-0700301R5M | 1.5±20% | 10.6 | 12.1 | 14 | 10.5 | 43 | |
| SP14-0700302R2M | 2.2±20% | 13.5 | 15 | 10 | 9.5 | 38 | |
| SP14-0700303R3M | 3.3±20% | 18 | 22 | 9 | 8.5 | 32 | |
| SP14-0700304R7M | 4.7±20% | 28 | 33 | 8.5 | 6 | 26 | |
| SP14-0700306R8M | 6.8±20% | 42.5 | 48 | 6 | 5 | 20 | |
| SP14-0700308R2M | 8.2±20% | 54 | 60 | 5.5 | 5 | 19 | |
| SP14-070030100M | 10±20% | 62 | 67 | 5.5 | 4.5 | 17 | |
| SP14-070030150M | 15±20% | 104 | 115 | 4.5 | 3 | 15 | |
| SP14-070030220M | 22±20% | 180 | 200 | 3 | 2.3 | 13 | |
| SP14-070030330M | 33±20% | 280 | 310 | 2.5 | 2 | 9.6 | |
