Vietnamese SP15-057030 Type

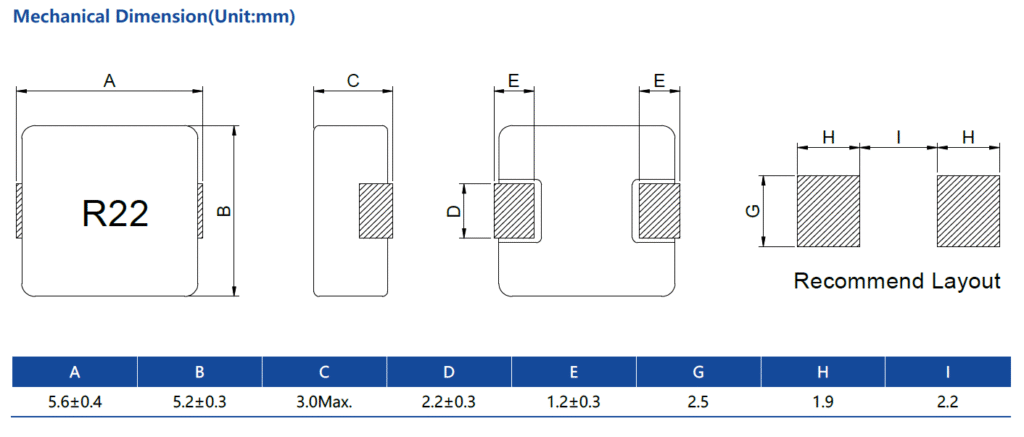

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP15-057030R22M | 0.22±20% | 3.60 | 4.40 | 32.0 | 19.0 | 130 |  |
| SP15-057030R33M | 0.33±20% | 4.50 | 5.00 | 21.0 | 15.1 | 117 | |
| SP15-057030R47M | 0.47±20% | 6.30 | 7.40 | 18.0 | 13.0 | 100 | |
| SP15-057030R56M | 0.56±20% | 7.80 | 8.80 | 17.0 | 12.0 | 96 | |
| SP15-057030R68M | 0.68±20% | 8.00 | 9.20 | 15.5 | 11.0 | 90 | |
| SP15-057030R82M | 0.82±20% | 8.70 | 10.0 | 14.0 | 10.0 | 78 | |
| SP15-0570301R0M | 1.0±20% | 11.0 | 12.8 | 13.0 | 9.00 | 60 | |
| SP15-0570301R5M | 1.5±20% | 14.5 | 16.6 | 11.5 | 8.00 | 45 | |
| SP15-0570302R2M | 2.2±20% | 26.0 | 29.2 | 11.0 | 7.00 | 42 | |
| SP15-0570303R3M | 3.3±20% | 33.0 | 38.0 | 9.00 | 6.00 | 28 | |
| SP15-0570304R7M | 4.7±20% | 48.0 | 55.0 | 8.00 | 5.50 | 25 | |
| SP15-0570305R6M | 5.6±20% | 54.0 | 63.0 | 7.30 | 4.70 | 22 | |
| SP15-0570306R8M | 6.8±20% | 68.0 | 76.2 | 6.00 | 4.20 | 20 | |
| SP15-0570308R2M | 8.2±20% | 85.0 | 97.0 | 5.00 | 3.80 | 18 | |
| SP15-057030100M | 10±20% | 105 | 120 | 4.00 | 3.50 | 16 | |
