Russian SP17-070050 Type
SP17-070050 Type
Features
■ Magnetically shielded construction, Flat wire
■ Storage temperature range:-55℃ to +125℃
■ Operating temperature range:-55℃ to +125℃
(including coil's self-temperature rise)
■ Moisture sensitivity level:1
■ RoHs&Halogen-free compliant
Facebook
Twitter
LinkedIn
Products Catalogue
相关新闻

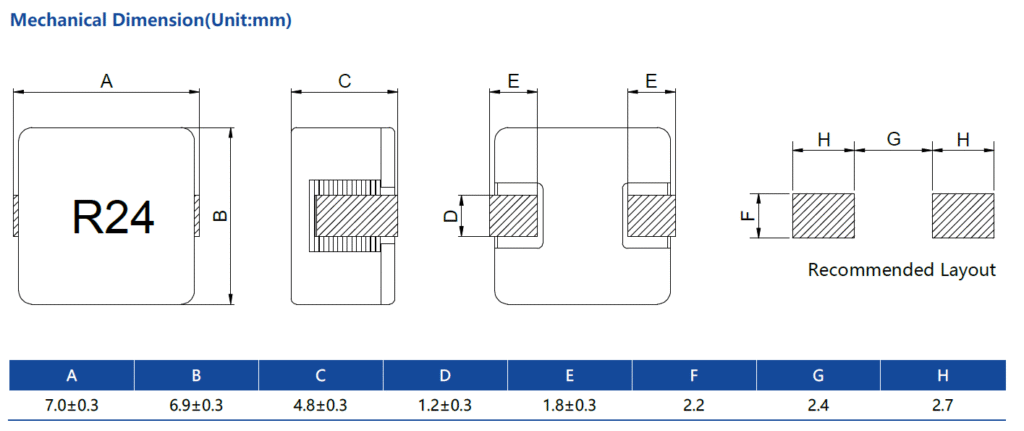

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|
| (mΩ) | (A)Typ. | (A)Typ. | ||||
| SP17-070050R24M | 0.24±20% | 1.0±10% | 28 | 20 | 320 |  |
| SP17-070050R47M | 0.47±20% | 1.4±10% | 20 | 18 | 235 | |
| SP17-070050R76M | 0.76±20% | 2.3±10% | 15 | 15.5 | 200 | |
| SP17-0700501R1M | 1.1±20% | 3.2±10% | 13 | 15 | 135 | |
| SP17-0700501R5M | 1.5±20% | 4.3±10% | 11 | 13 | 110 | |
| SP17-0700502R0M | 2.0±20% | 5.9±10% | 9 | 11.5 | 68 | |
| SP17-0700503R3M | 3.3±20% | 9.0±10% | 8 | 9 | 65 | |
| SP17-0700504R9M | 4.9±20% | 14.5±10% | 6.5 | 6.5 | 56 | |
| SP17-0700506R5M | 6.5±20% | 21.5±10% | 6 | 6 | 50 | |
| SP17-0700507R6M | 7.6±20% | 28.2±10% | 4.8 | 4.2 | 48 | |
| SP17-0700508R5M | 8.5±20% | 30.5±10% | 4.5 | 4 | 44 | |
| SP17-070050100M | 10±20% | 33.0±10% | 4 | 3.5 | 40 | |
