Russian SCM03-032022TL Type

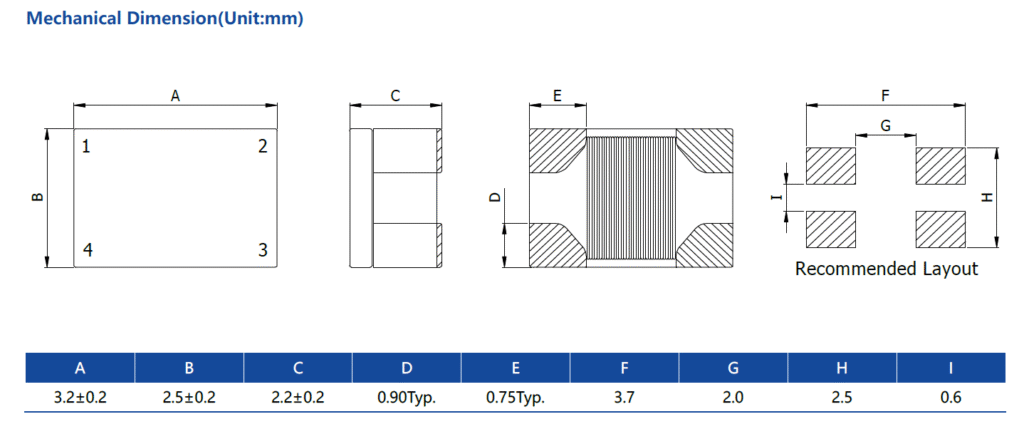

产品尺寸
产品参数
| Part Number | Inductance (uH)@100KHz/0.1V | Common mode Impedance | DCR | Rated Current | Rated Voltage | Insulation Resistanc | ||
|---|---|---|---|---|---|---|---|---|
| (Ω)@10MHz | (mΩ)Max. | (mA)Max. | (Vdc)Max. | (MΩ)Min. | ||||
| SCM03-032022TL110N | 11+50%/-30% | 300Min. | 550Typ. | 400 | 300 | 60 | 10 |  |
| SCM03-032022TL220N | 22+50%/-30% | 500Min. | 1100Typ. | 500 | 250 | 60 | 10 | |
| SCM03-032022TL510N | 51+50%/-30% | 1000Min. | 2600Typ. | 700 | 200 | 60 | 10 | |
| SCM03-032022TL101N | 100+50%/-30% | 2200Min. | 5100Typ. | 1500 | 150 | 60 | 10 | |
| SCM03-032022TL201N | 200+50%/-30% | 5000Min. | 10000Typ. | 6000 | 70 | 60 | 10 | |
