Russian SP03-1006A Type

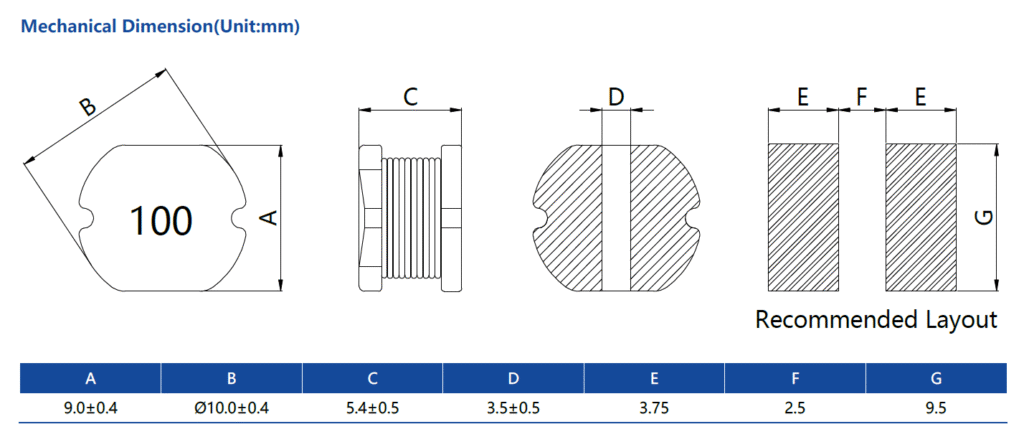

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (Ω)Max. | (A)Typ. | (A)Max. | ||||
| SP03-1006A100M | 10±20% | 0.028 | 0.06 | 3.3 | 3 | 24 |  |
| SP03-1006A120M | 12±20% | 0.033 | 0.07 | 3.15 | 2.75 | 23 | |
| SP03-1006A150K | 15±10% | 0.04 | 0.08 | 2.9 | 2.5 | 20 | |
| SP03-1006A180K | 18±10% | 0.043 | 0.09 | 2.43 | 2.36 | 19 | |
| SP03-1006A220K | 22±10% | 0.051 | 0.1 | 2.1 | 2.04 | 16 | |
| SP03-1006A270K | 27±10% | 0.063 | 0.11 | 2 | 1.95 | 15 | |
| SP03-1006A330K | 33±10% | 0.083 | 0.12 | 1.9 | 1.8 | 13 | |
| SP03-1006A390K | 39±10% | 0.098 | 0.14 | 1.8 | 1.62 | 12 | |
| SP03-1006A470K | 47±10% | 0.105 | 0.17 | 1.62 | 1.45 | 11 | |
| SP03-1006A560K | 56±10% | 0.112 | 0.19 | 1.55 | 1.36 | 10 | |
| SP03-1006A680K | 68±10% | 0.138 | 0.22 | 1.5 | 1.2 | 9 | |
| SP03-1006A820K | 82±10% | 0.15 | 0.25 | 1.17 | 1.11 | 8 | |
| SP03-1006A101K | 100±10% | 0.2 | 0.35 | 1.1 | 1.02 | 7.5 | |
| SP03-1006A121K | 120±10% | 0.243 | 0.4 | 0.99 | 0.95 | 6.5 | |
| SP03-1006A151K | 150±10% | 0.3 | 0.47 | 0.9 | 0.81 | 6 | |
| SP03-1006A181K | 180±10% | 0.32 | 0.63 | 0.8 | 0.76 | 5.4 | |
| SP03-1006A221K | 220±10% | 0.451 | 0.73 | 0.77 | 0.68 | 5 | |
| SP03-1006A271K | 270±10% | 0.5 | 0.97 | 0.68 | 0.62 | 4.3 | |
| SP03-1006A331K | 330±10% | 0.75 | 1.15 | 0.6 | 0.52 | 4.1 | |
| SP03-1006A391K | 390±10% | 0.794 | 1.3 | 0.54 | 0.49 | 3.9 | |
| SP03-1006A471K | 470±10% | 0.969 | 1.48 | 0.5 | 0.44 | 3.4 | |
| SP03-1006A561K | 560±10% | 1.047 | 1.9 | 0.47 | 0.39 | 3 | |
| SP03-1006A681K | 680±10% | 1.245 | 2.25 | 0.43 | 0.37 | 2.7 | |
| SP03-1006A821K | 820±10% | 1.42 | 2.5 | 0.41 | 0.34 | 2.5 | |
| SP03-1006A102K | 1000±10% | 2.2 | 2.6 | 0.38 | 0.32 | 2.3 | |
| SP03-1006A122K | 1200±10% | 2.48 | 3 | 0.38 | 0.3 | 2.1 | |
| SP03-1006A222K | 2200±10% | 4.4 | 5.3 | 0.26 | 0.18 | 1.4 | |
