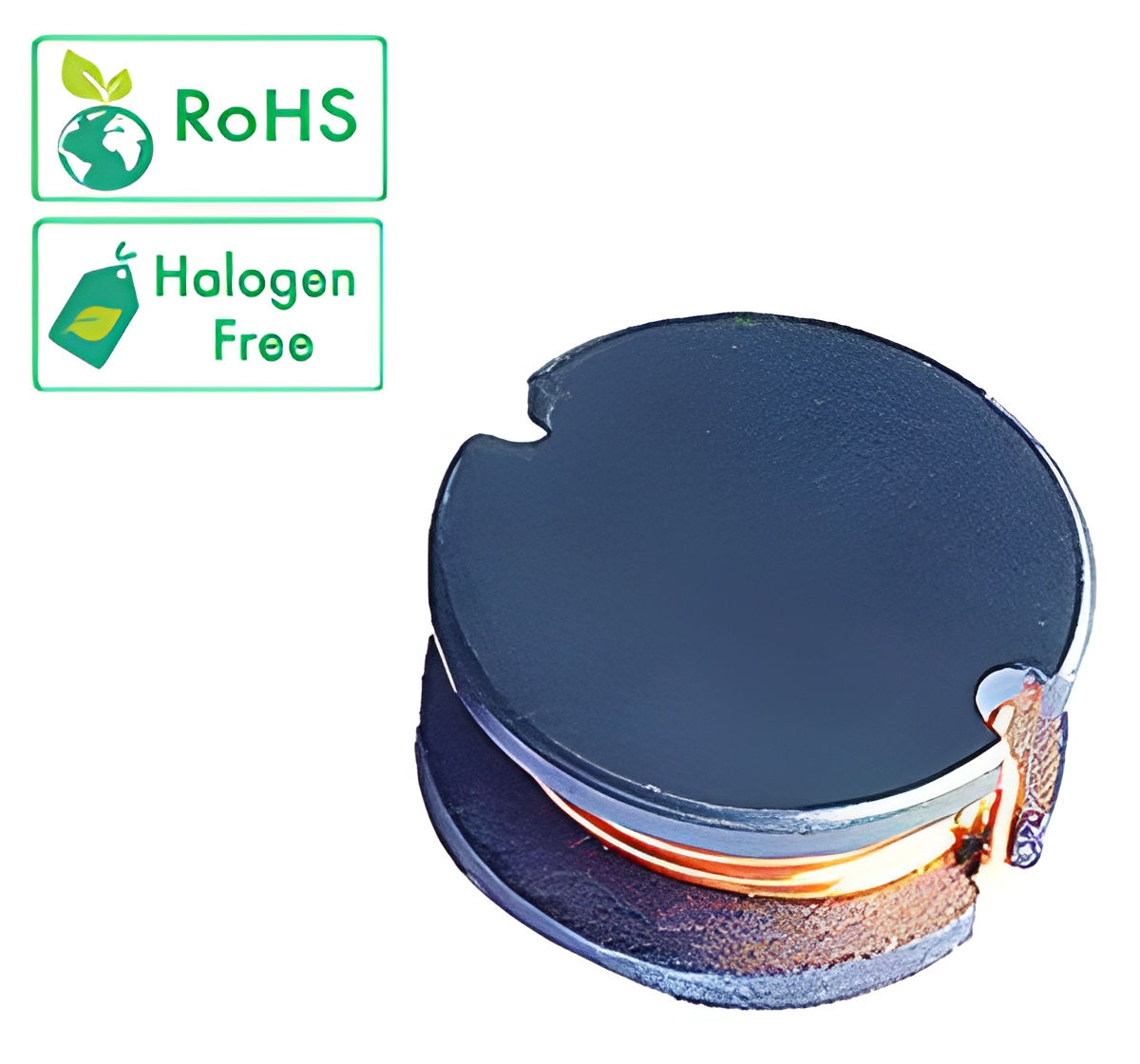

Russian SP03-1012 Type

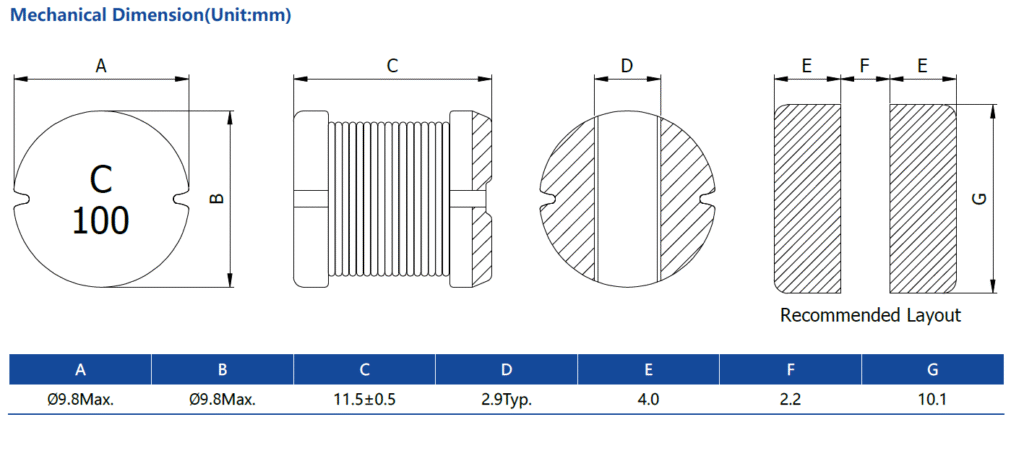

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms1 | Irms2 | SRF (MHz)Typ | |
|---|---|---|---|---|---|---|---|
| (mΩ)Max. | (A)Typ. | (A)Typ | (A)Max. | ||||
| SP03-1012100M | 10±20% | 35 | 8 | 3.5 | 5 | 18 |  |
| SP03-1012150M | 15±20% | 45 | 7 | 3 | 4 | 13 | |
| SP03-1012220M | 22±20% | 65 | 5.5 | 2.5 | 3.2 | 12 | |
| SP03-1012330K | 33±10% | 80 | 4 | 2 | 2.6 | 9.5 | |
| SP03-1012470K | 47±10% | 110 | 3.8 | 1.7 | 2.2 | 7 | |
| SP03-1012680K | 68±10% | 150 | 3 | 1.5 | 2 | 5.8 | |
| SP03-1012101K | 100±10% | 200 | 2.5 | 1.3 | 1.8 | 4.8 | |
| SP03-1012151K | 150±10% | 320 | 2 | 1 | 1.5 | 3.8 | |
| SP03-1012221K | 220±10% | 420 | 1.7 | 0.9 | 1.2 | 3.1 | |
| SP03-1012331K | 330±10% | 700 | 1.3 | 0.7 | 0.9 | 2.5 | |
| SP03-1012471K | 470±10% | 900 | 1.1 | 0.5 | 0.75 | 2.1 | |
| SP03-1012681K | 680±10% | 1250 | 1 | 0.4 | 0.6 | 1.7 | |
| SP03-1012102K | 1000±10% | 1900 | 0.8 | 0.3 | 0.5 | 1.4 | |
