Russian SP06-030015 Type

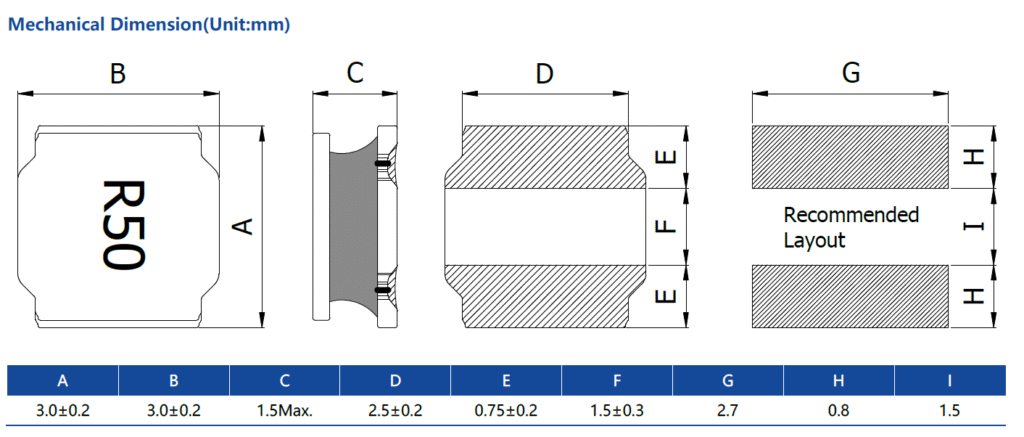

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |||
|---|---|---|---|---|---|---|---|---|
| (Ω)±30% | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | ||||
| SP06-030015R50N | 0.50±30% | 0.03 | 3.9 | 4.2 | 2.6 | 2.8 | 162 |  |
| SP06-0300151R0N | 1.0±30% | 0.03 | 2.32 | 2.8 | 2.35 | 2.5 | 150 | |
| SP06-0300151R5N | 1.5±30% | 0.05 | 2.3 | 2.7 | 1.7 | 2.2 | 100 | |
| SP06-0300151R8N | 1.8±30% | 0.05 | 1.75 | 2.2 | 1.7 | 2.2 | 92 | |
| SP06-0300152R2N | 2.2±30% | 0.06 | 1.6 | 2 | 1.6 | 2 | 86 | |
| SP06-0300153R3M | 2.2±20% | 0.08 | 1.32 | 1.81 | 1.36 | 1.6 | 68 | |
| SP06-0300153R9M | 3.9±20% | 0.105 | 1.2 | 1.4 | 1.2 | 1.5 | 47 | |
| SP06-0300154R7M | 4.7±20% | 0.125 | 1.1 | 1.4 | 1.09 | 1.3 | 46 | |
| SP06-0300156R8M | 6.8±20% | 0.2 | 0.85 | 1.1 | 0.85 | 1.1 | 39 | |
| SP06-030015100M | 10±20% | 0.25 | 0.72 | 0.92 | 0.77 | 0.9 | 41 | |
| SP06-030015120M | 12±20% | 0.32 | 0.7 | 0.9 | 0.68 | 0.89 | 32 | |
| SP06-030015150M | 15±20% | 0.35 | 0.66 | 0.88 | 0.65 | 0.72 | 30 | |
| SP06-030015180M | 18±20% | 0.43 | 0.56 | 0.72 | 0.59 | 0.72 | 23 | |
| SP06-030015220M | 22±20% | 0.46 | 0.52 | 0.68 | 0.57 | 0.69 | 23 | |
| SP06-030015270M | 27±20% | 0.73 | 0.48 | 0.56 | 0.45 | 0.56 | 22 | |
| SP06-030015330M | 33±20% | 0.82 | 0.44 | 0.53 | 0.43 | 0.51 | 20 | |
| SP06-030015390M | 39±20% | 0.995 | 0.41 | 0.55 | 0.39 | 0.44 | 14 | |
| SP06-030015470M | 47±20% | 1.25 | 0.35 | 0.43 | 0.35 | 0.44 | 14 | |
| SP06-030015560M | 56±20% | 1.28 | 0.33 | 0.42 | 0.34 | 0.41 | 13 | |
| SP06-030015680M | 68±20% | 2.7 | 0.28 | 0.37 | 0.23 | 0.31 | 11 | |
| SP06-030015101M | 100±20% | 3.11 | 0.23 | 0.25 | 0.21 | 0.25 | 6.3 | |
| SP06-030015151M | 150±20% | 3.8 | 0.18 | 0.22 | 0.19 | 0.23 | 4.7 | |
