Russian SP06-050020 Type

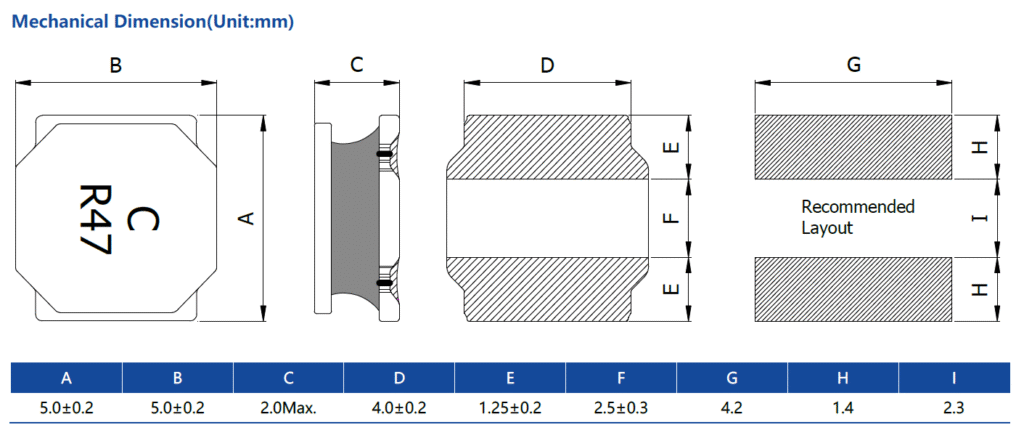

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | |||
|---|---|---|---|---|---|---|---|---|
| (Ω)±30% | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | ||||
| SP06-050020R47N | 0.47±30% | 0.013 | 6.15 | 6.7 | 4.6 | 5 | 160 |  |
| SP06-050020R68N | 0.68±30% | 0.017 | 5.5 | 6 | 4 | 4.4 | 120 | |
| SP06-0500201R0N | 1.0±30% | 0.02 | 4.1 | 5 | 3.8 | 4.1 | 114 | |
| SP06-0500201R2N | 1.2±30% | 0.022 | 4.5 | 4.9 | 3.55 | 3.9 | 83 | |
| SP06-0500201R5N | 1.5±30% | 0.026 | 4.1 | 4.5 | 3.2 | 3.5 | 68 | |
| SP06-0500202R2N | 2.2±30% | 0.032 | 3.2 | 4 | 2.9 | 3.1 | 57 | |
| SP06-0500203R3N | 3.3±30% | 0.043 | 2.55 | 3 | 2.5 | 2.7 | 46 | |
| SP06-0500203R9N | 3.9±30% | 0.043 | 2.3 | 2.8 | 2.5 | 2.7 | 40 | |
| SP06-0500204R7M | 4.7±20% | 0.057 | 2.5 | 2.7 | 2.2 | 2.4 | 37 | |
| SP06-0500205R6M | 5.6±20% | 0.064 | 2.3 | 2.5 | 2.05 | 2.2 | 32 | |
| SP06-0500206R8M | 6.8±20% | 0.083 | 2.05 | 2.2 | 1.8 | 1.9 | 30 | |
| SP06-0500208R2M | 8.2±20% | 0.098 | 1.85 | 2 | 1.65 | 1.8 | 26 | |
| SP06-050020100M | 10±20% | 0.11 | 1.7 | 1.8 | 1.55 | 1.7 | 24 | |
| SP06-050020120M | 12±20% | 0.14 | 1.5 | 1.6 | 1.4 | 1.5 | 22 | |
| SP06-050020150M | 15±20% | 0.165 | 1.35 | 1.4 | 1.25 | 1.3 | 20 | |
| SP06-050020220M | 22±20% | 0.226 | 1.15 | 1.2 | 1.1 | 1.2 | 14 | |
| SP06-050020330M | 33±20% | 0.39 | 0.92 | 1 | 0.9 | 0.99 | 10 | |
| SP06-050020470M | 47±20% | 0.523 | 0.77 | 0.84 | 0.77 | 0.84 | 7 | |
| SP06-050020560M | 56±20% | 0.63 | 0.77 | 0.84 | 0.7 | 0.77 | 6 | |
| SP06-050020680M | 68±20% | 0.74 | 0.65 | 0.7 | 0.64 | 0.7 | 6 | |
| SP06-050020820M | 82±20% | 0.97 | 0.65 | 0.75 | 0.5 | 0.6 | 6 | |
| SP06-050020101M | 100±20% | 1.1 | 0.53 | 0.58 | 0.53 | 0.58 | 6 | |
| SP06-050020121M | 120±20% | 1.35 | 0.42 | 0.53 | 0.4 | 0.5 | 6 | |
| SP06-050020201M | 200±20% | 2 | 0.3 | 0.33 | 0.4 | 0.45 | 4.5 | |
