Russian SP07-030015 Type

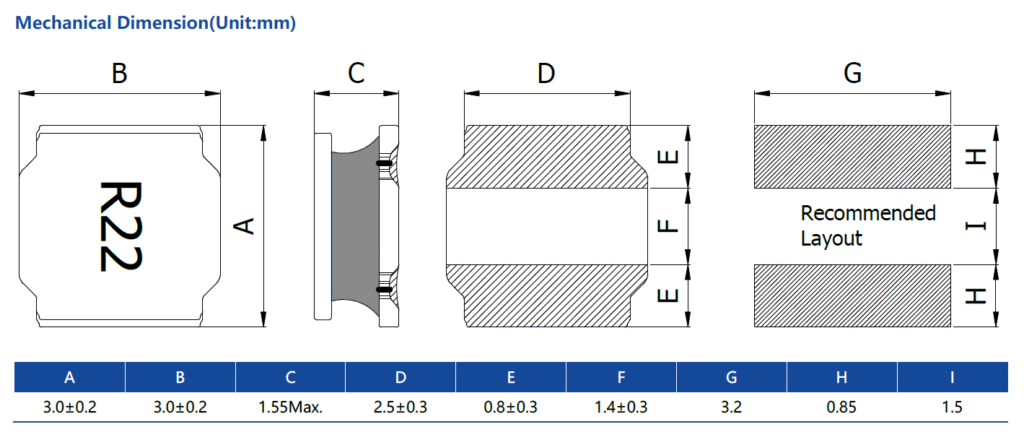

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Max. | (mΩ)Typ. | (A)Max. | (A)Typ. | (A)Max. | (A)Typ. | |||
| SP07-030015R22M | 0.22±20% | 20 | 15 | 8.8 | 11 | 5.2 | 6 |  |
| SP07-030015R24M | 0.24±20% | 20 | 15 | 8.6 | 10.6 | 5 | 5.9 | |
| SP07-030015R33M | 0.33±20% | 21 | 16 | 8 | 10 | 4.9 | 5.8 | |
| SP07-030015R47M | 0.47±20% | 26 | 20 | 7.6 | 9.5 | 4.6 | 5 | |
| SP07-030015R68M | 0.68±20% | 37 | 28 | 7 | 8.3 | 3.8 | 4.5 | |
| SP07-0300151R0M | 1.0±20% | 48 | 37 | 5.8 | 7 | 3.3 | 3.8 | |
| SP07-0300151R5M | 1.5±20% | 72 | 55 | 4.6 | 5.5 | 2.2 | 2.7 | |
| SP07-0300152R2M | 2.2±20% | 95 | 75 | 3.7 | 4.6 | 2.2 | 2.5 | |
| SP07-0300153R3M | 3.3±20% | 150 | 110 | 3.4 | 3.4 | 2 | 2.3 | |
| SP07-0300154R7M | 4.7±20% | 185 | 150 | 2.5 | 3 | 1.7 | 1.9 | |
| SP07-0300155R6M | 5.6±20% | 250 | 190 | 2.2 | 2.8 | 1.5 | 1.75 | |
| SP07-0300156R8M | 6.8±20% | 320 | 250 | 2 | 2.4 | 1.2 | 1.35 | |
| SP07-030015100M | 10±20% | 450 | 350 | 1.6 | 2 | 1.1 | 1.2 | |
| SP07-030015150M | 15±20% | 610 | 460 | 1.45 | 1.75 | 1 | 1.1 | |
| SP07-030015220M | 22±20% | 910 | 700 | 1 | 1.2 | 0.56 | 0.66 | |
| SP07-030015330M | 33±20% | 1260 | 970 | 0.9 | 1.1 | 0.5 | 0.6 | |
| SP07-030015470M | 47±20% | 1900 | 1450 | 0.8 | 0.86 | 0.42 | 0.48 | |
