Russian SP14-047020 Type

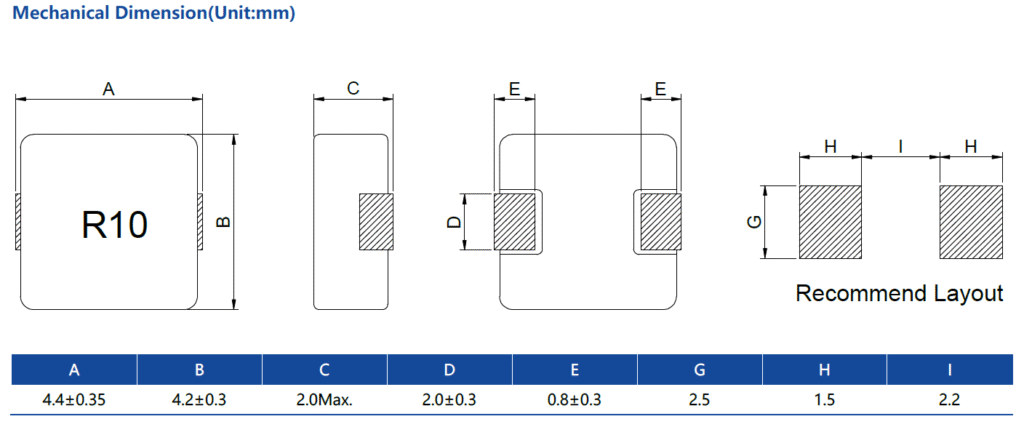

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ. | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP14-047020R10M | 0.10±20% | 3.9 | 4.5 | 22 | 13 | 300 |  |
| SP14-047020R22M | 0.22±20% | 5.8 | 6.8 | 12.5 | 9.5 | 148 | |
| SP14-047020R33M | 0.33±20% | 9.2 | 11 | 12 | 10 | 126 | |
| SP14-047020R47M | 0.47±20% | 11 | 14 | 9.5 | 7.5 | 100 | |
| SP14-047020R56M | 0.56±20% | 12.5 | 16 | 9 | 7 | 92 | |
| SP14-047020R68M | 0.68±20% | 15 | 18 | 8 | 7 | 85 | |
| SP14-0470201R0M | 1.0±20% | 23.5 | 28 | 7 | 6 | 63 | |
| SP14-0470201R2M | 1.2±20% | 25.5 | 30 | 6.5 | 6 | 59 | |
| SP14-0470201R5M | 1.5±20% | 38 | 46 | 5.5 | 5 | 45 | |
| SP14-0470202R2M | 2.2±20% | 45 | 58 | 5 | 4.5 | 39 | |
| SP14-0470203R3M | 3.3±20% | 75 | 88 | 3.5 | 3.3 | 35 | |
| SP14-0470204R7M | 4.7±20% | 85 | 105 | 3 | 2.8 | 28 | |
| SP14-0470206R8M | 6.8±20% | 145 | 175 | 2.5 | 2.4 | 25 | |
| SP14-0470208R2M | 8.2±20% | 185 | 250 | 2 | 1.8 | 22 | |
| SP14-047020100M | 10±20% | 200 | 282 | 2 | 1.6 | 20 | |
