Russian SP16-201608 Type

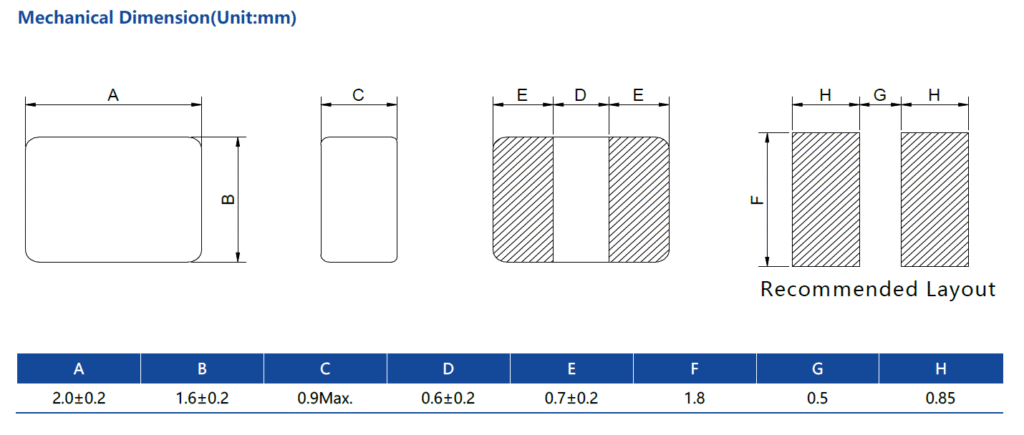

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-201608R22M | 0.22±20% | 14 | 19 | 6.1 | 5.6 | 6.6 | 5.9 |  |
| SP16-201608R24M | 0.24±20% | 14 | 20 | 6 | 5.5 | 6.5 | 5.8 | |
| SP16-201608R33M | 0.33±20% | 18 | 24 | 5.8 | 5.3 | 5.5 | 4.8 | |
| SP16-201608R47M | 0.47±20% | 24 | 27 | 5.5 | 5 | 4.6 | 4.4 | |
| SP16-201608R68M | 0.68±20% | 39 | 44 | 4.6 | 4.2 | 3.8 | 3.5 | |
| SP16-2016081R0M | 1.0±20% | 53 | 60 | 3.3 | 3.1 | 3.6 | 3.3 | |
| SP16-2016081R5M | 1.5±20% | 73 | 85 | 3 | 2.8 | 3.1 | 2.8 | |
| SP16-2016082R2M | 2.2±20% | 123 | 140 | 2.5 | 2.3 | 2.2 | 2 | |
| SP16-2016083R3M | 3.3±20% | 200 | 220 | 2.1 | 1.8 | 1.8 | 1.5 | |
| SP16-2016084R7M | 4.7±20% | 260 | 290 | 1.7 | 1.5 | 1.6 | 1.4 | |
