Russian SP16-201612 Type

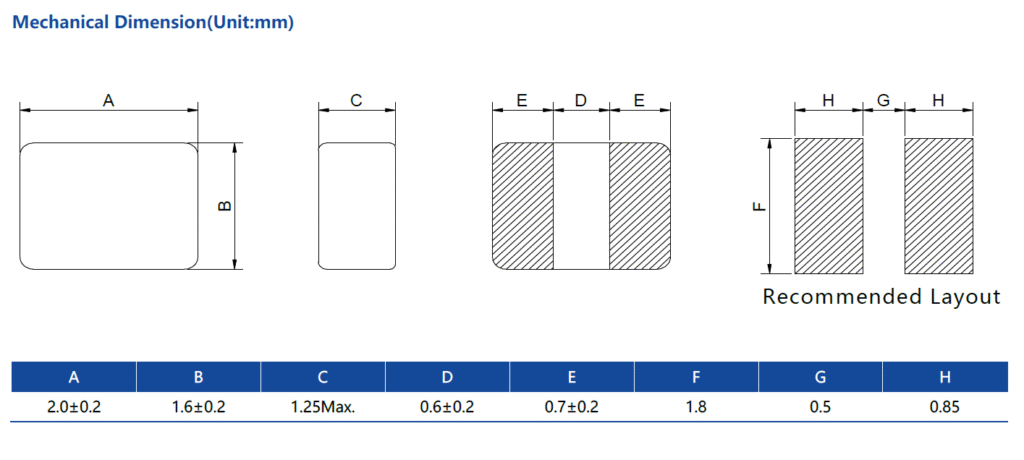

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-201612R10M | 0.10±20% | 4 | 6 | 13 | 11.5 | 12 | 10 |  |
| SP16-201612R11M | 0.11±20% | 4.8 | 5.6 | 12.5 | 11 | 15.5 | 14.5 | |
| SP16-201612R15M | 0.15±20% | 7.5 | 10 | 12 | 10.5 | 10 | 9 | |
| SP16-201612R24M | 0.24±20% | 9 | 11 | 9.2 | 8.7 | 9.1 | 8.6 | |
| SP16-201612R33M | 0.33±20% | 10 | 15 | 7.8 | 7.3 | 7.7 | 7.2 | |
| SP16-201612R47M | 0.47±20% | 13 | 17 | 6.7 | 6 | 6.7 | 6 | |
| SP16-201612R68M | 0.68±20% | 19 | 23 | 6 | 5.3 | 6 | 5.3 | |
| SP16-2016121R0M | 1.0±20% | 30 | 36 | 5 | 4.5 | 5 | 4.5 | |
| SP16-2016121R5M | 1.5±20% | 40 | 50 | 4 | 3.5 | 4 | 3.5 | |
| SP16-2016122R2M | 2.2±20% | 77 | 90 | 3.1 | 2.7 | 3.3 | 2.9 | |
| SP16-2016123R3M | 3.3±20% | 135 | 165 | 2.7 | 2.3 | 2.4 | 2 | |
| SP16-2016126R8M | 6.8±20% | 255 | 300 | 1.9 | 1.7 | 1.8 | 1.7 | |
