Russian SP16-252010 Type

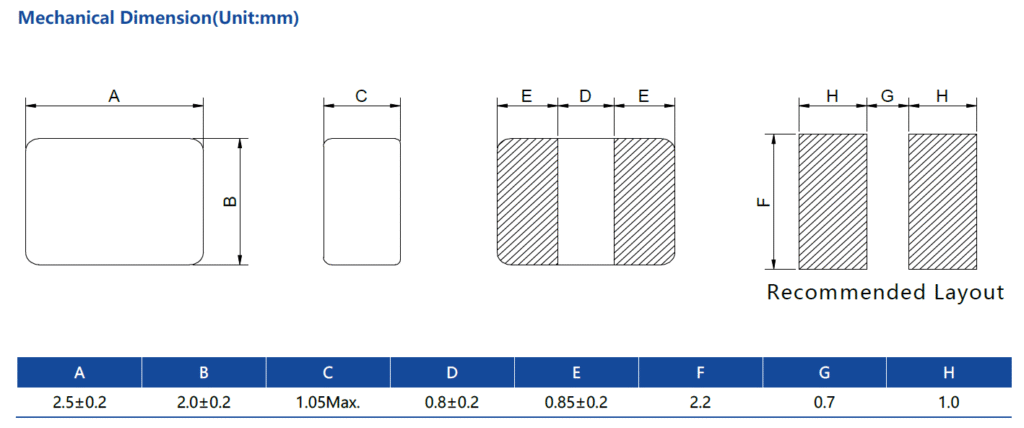

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | ||||
|---|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Max. | (A)Typ. | (A)Max. | |||
| SP16-252010R22M | 0.22±20% | 12 | 17 | 8.6 | 7.9 | 6.8 | 6.5 |  |
| SP16-252010R24M | 0.24±20% | 12 | 17 | 8.5 | 7.8 | 6.7 | 6.4 | |
| SP16-252010R33M | 0.33±20% | 13 | 19 | 7.6 | 7.2 | 6.5 | 6.2 | |
| SP16-252010R47M | 0.47±20% | 15 | 22 | 7.2 | 6.5 | 6.1 | 5.6 | |
| SP16-252010R68M | 0.68±20% | 23 | 27 | 5.9 | 5.5 | 5.6 | 5 | |
| SP16-252010R82M | 0.82±20% | 24 | 29 | 5.3 | 4.8 | 4.5 | 4.1 | |
| SP16-2520101R0M | 1.0±20% | 25 | 30 | 5.4 | 4.8 | 4.7 | 4.1 | |
| SP16-2520101R5M | 1.5±20% | 45 | 55 | 4.3 | 3.9 | 3.4 | 3 | |
| SP16-2520102R2M | 2.2±20% | 62 | 70 | 3.3 | 3 | 2.4 | 2.1 | |
| SP16-2520103R3M | 3.3±20% | 86 | 100 | 2.8 | 2.5 | 2.5 | 2.1 | |
| SP16-2520104R7M | 4.7±20% | 160 | 180 | 2.6 | 2 | 2 | 1.6 | |
| SP16-2520106R8M | 6.8±20% | 270 | 320 | 2.4 | 1.9 | 1.6 | 1.4 | |
| SP16-252010100M | 10±20% | 500 | 560 | 1.6 | 1.4 | 1.1 | 0.9 | |
