Vietnamese DCM12-2514 Type

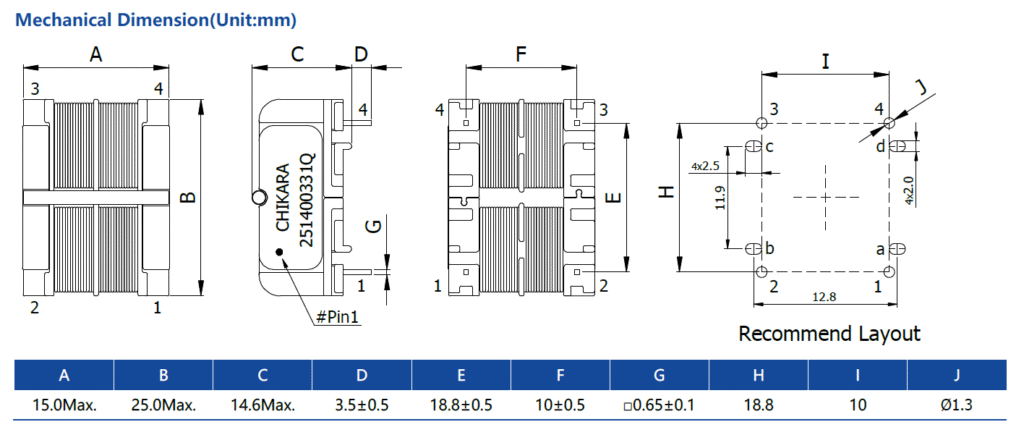

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Leakage Inductance | Rated Current | Rated Voltage | Hi-Pot (Coil - Coil) | |
|---|---|---|---|---|---|---|---|
| (Ω)Typ. | (uH)Max. | (A)Max. | (V/ac)Max. | ||||
| DCM12-251410001Q | 100+50%/-30% | 2.7 | 2220 | 0.45 | 300 | 2.5KV AC/3mA/3S |  |
| DCM12-251407801Q | 78+50%/-30% | 1.8 | 1640 | 0.58 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251406801Q | 68+50%/-30% | 1.5 | 1500 | 0.62 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251404701Q | 47+50%/-30% | 1.26 | 1120 | 0.75 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251403901Q | 39+50%/-30% | 1.1 | 860 | 0.85 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251403301Q | 33+50%/-30% | 0.77 | 580 | 0.92 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251401501Q | 15+50%/-30% | 0.4 | 350 | 1.32 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251401001Q | 10+50%/-30% | 0.24 | 180 | 1.65 | 300 | 2.5KV AC/3mA/3S | |
| DCM12-251400331Q | 3.3+50%/-30% | 0.16 | 85 | 2.5 | 300 | 2.5KV AC/3mA/3S | |
