Industrial & Medical

Image Type Dimensions  Inductance DCR   Isat     Irms  Specification
L*W*H(mm) (uH) (mOHM) (A) (A)

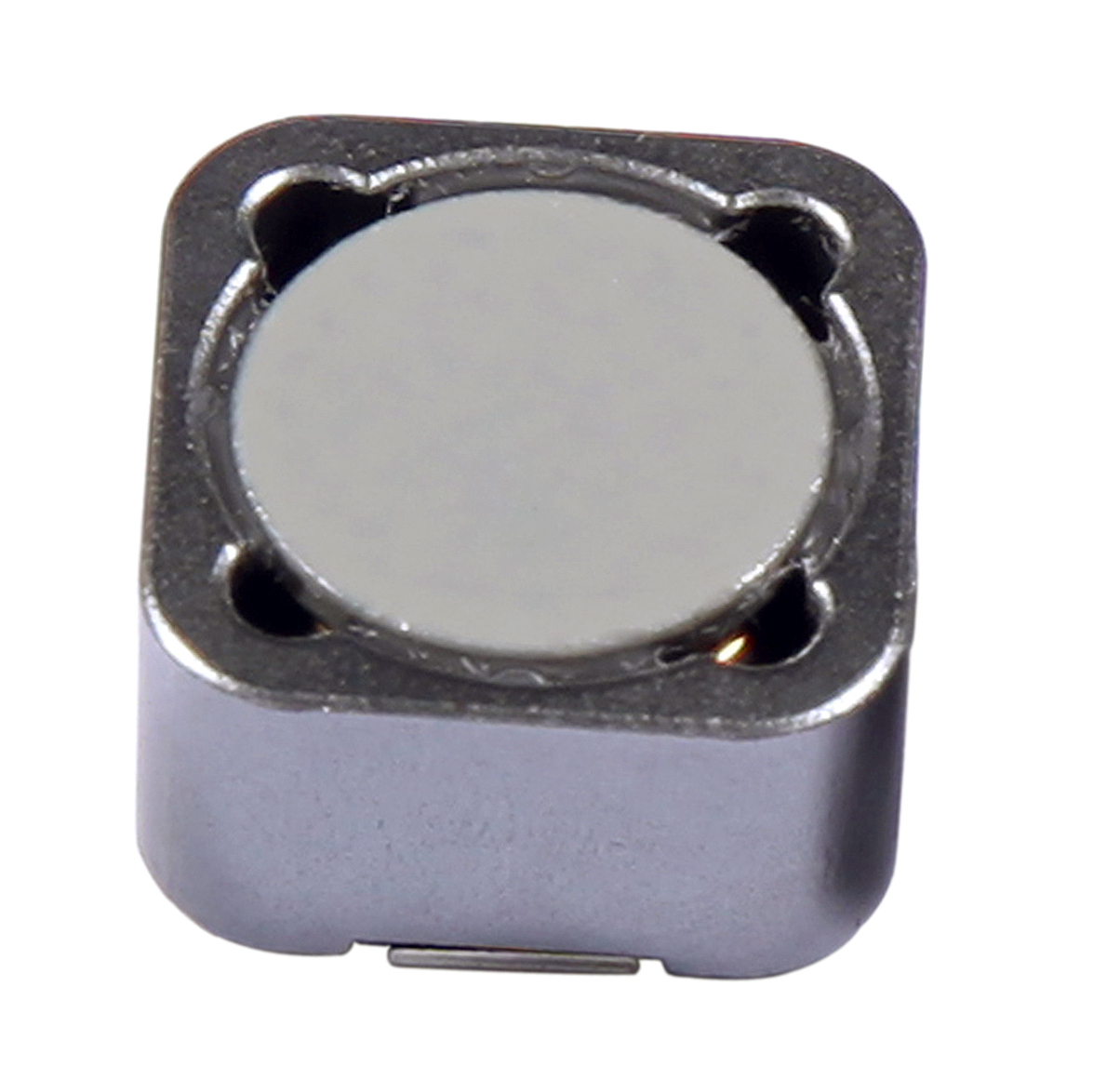

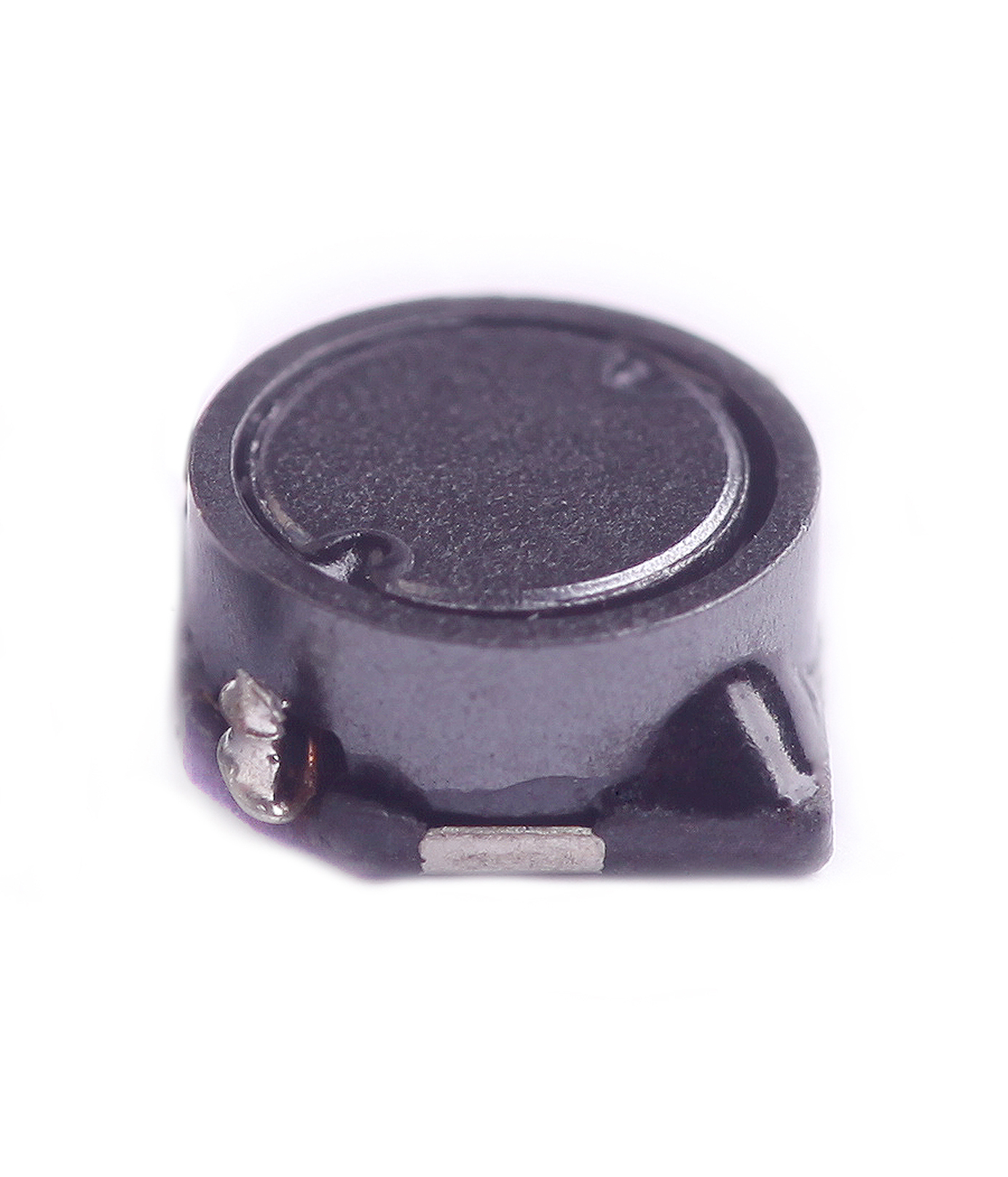

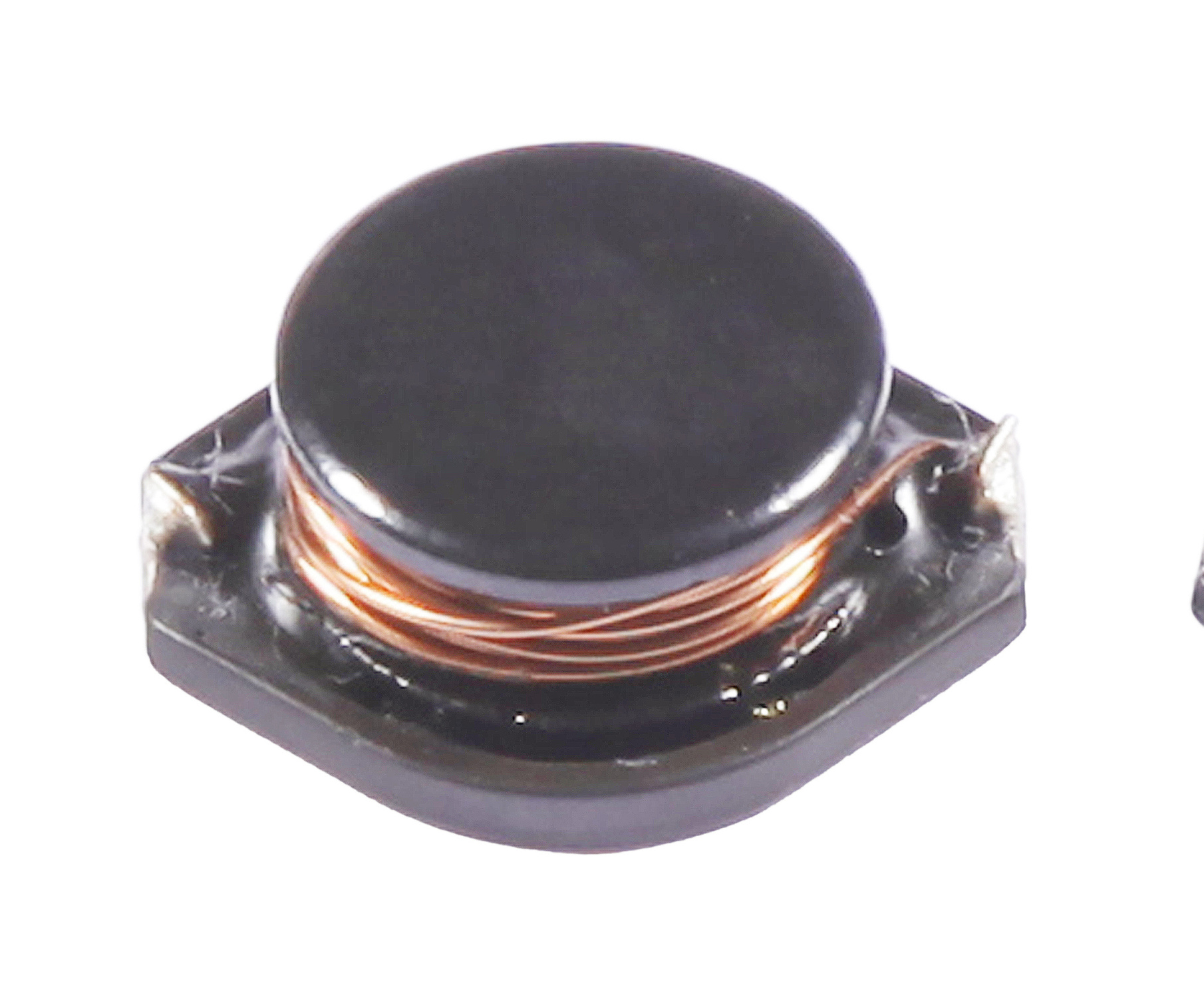

SP01-0603 6.2x6.3x3.0 2.5~100 17.6~520 2.6~0.4 2.6~0.4
SP01-1003 10.3x10.5x3.0 0.8~150 5.7~871 9.0~0.7 6.5~0.51
SP01-1004 10.3x10.5x4.0 1.0~1000 6.0~2853 12.1~0.46 10~0.45
SP01-1005 10.3x10.5x5.0 0.68~330 5.5~815 13.5~0.75 9.5~0.73

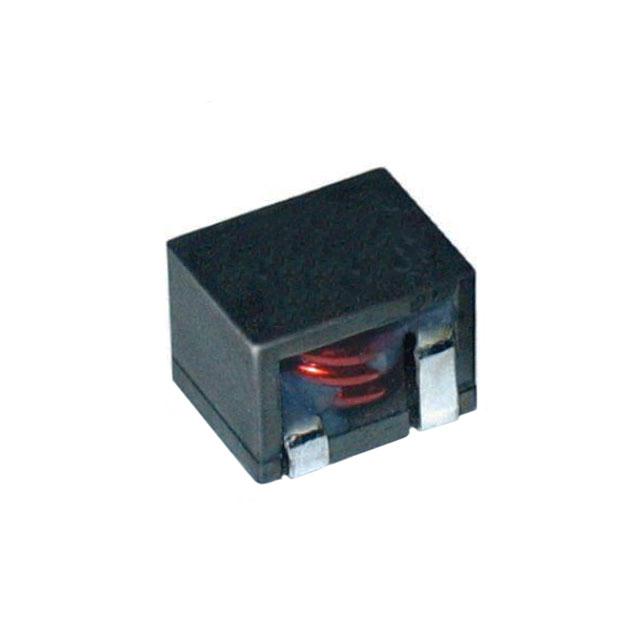

SP02-1108 9.2x10.8x8.0 0.30~6.8 0.68~7.7 42.5~8.5 47~9.6

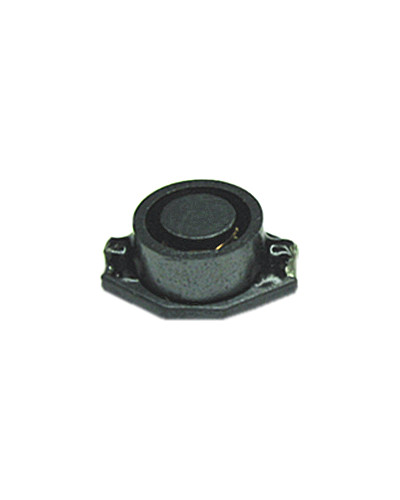

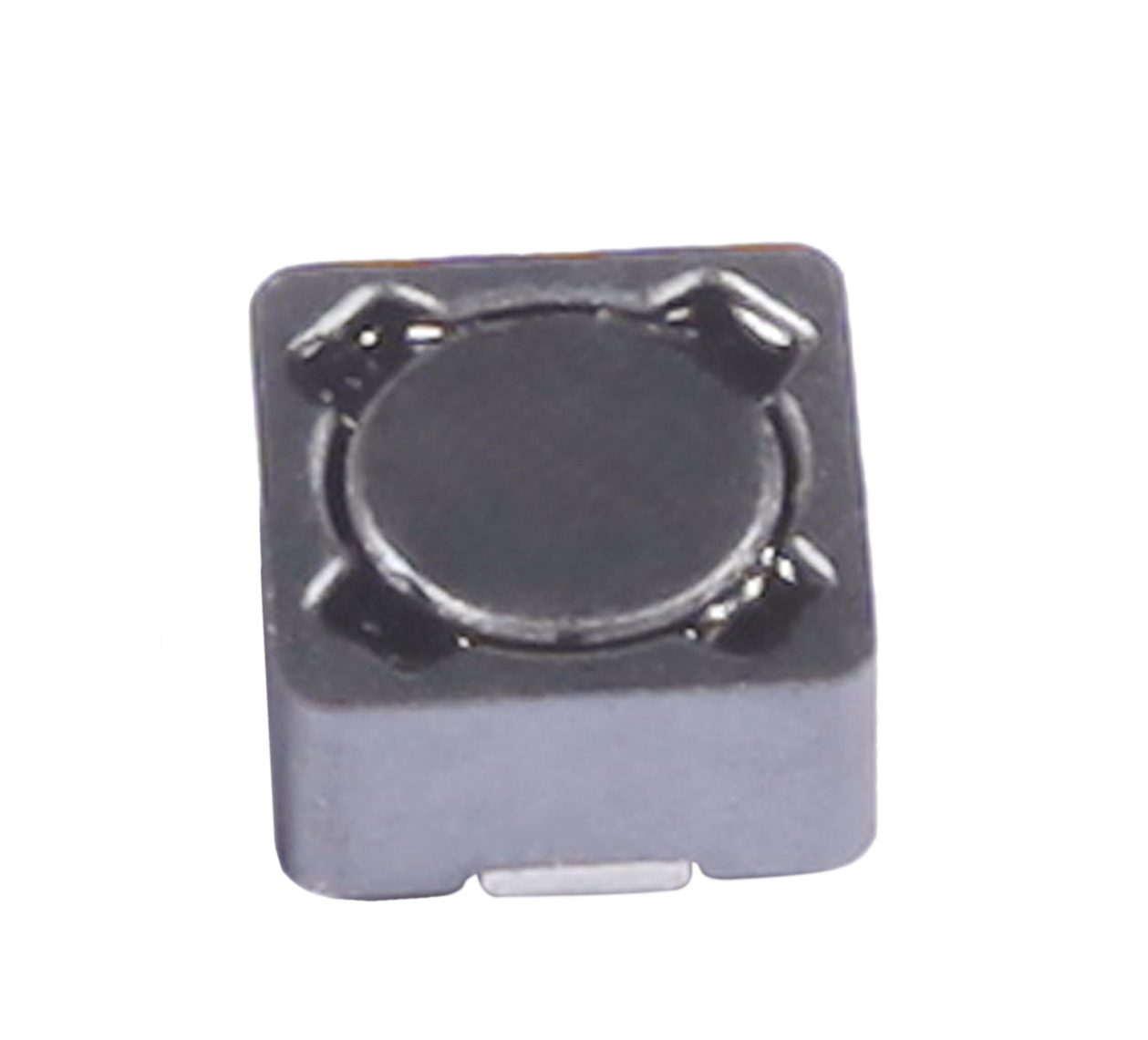

SP03-1006 9.8x9.8x5.8 1.5~2200 18~7600 10~0.36 6.4~0.16
SP03-1307 13.5x13.5x7.3 1.5~1000 5.0~1600 20~1.0 9.5~0.65

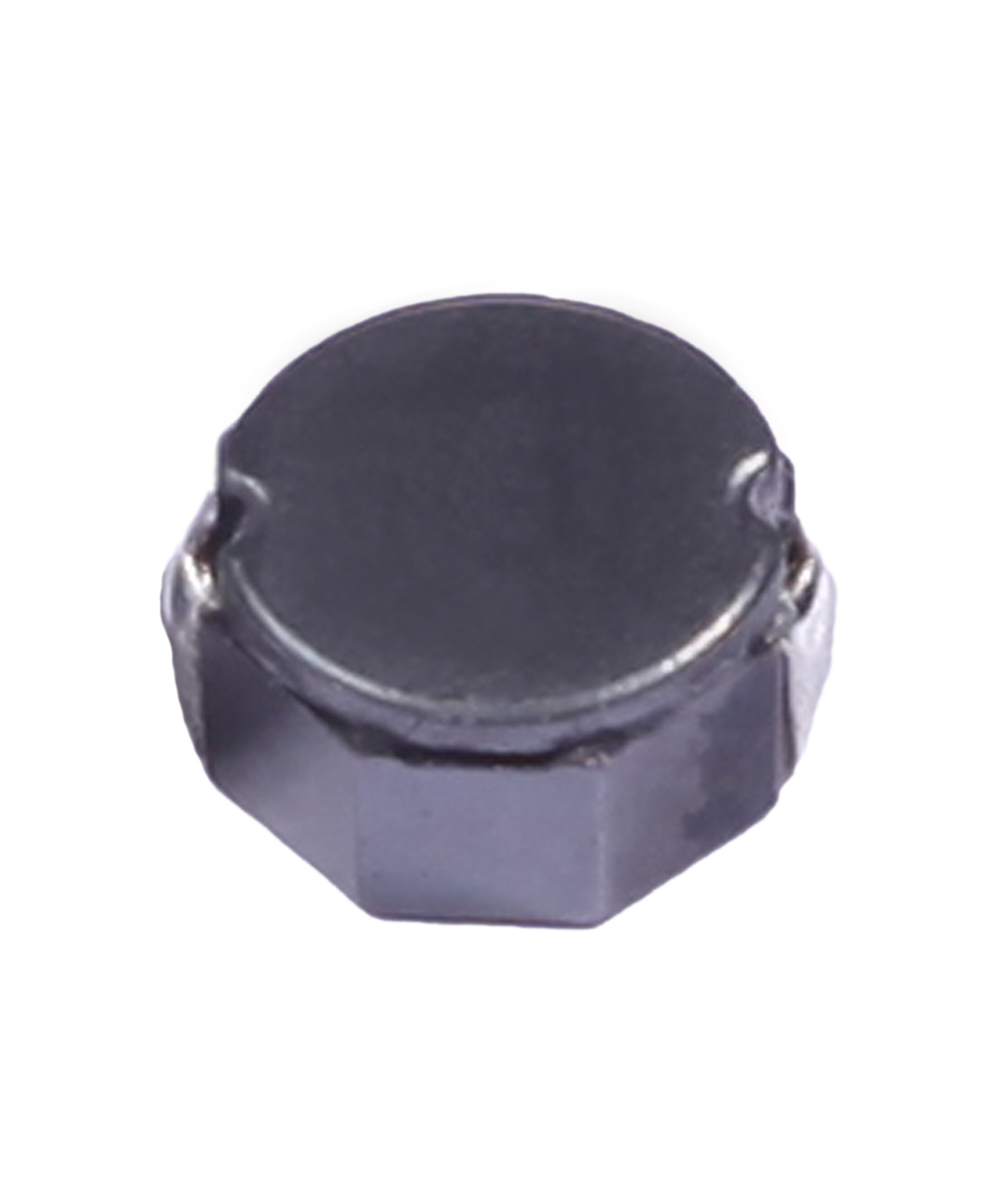

SP04-0703 7.3x7.3x3.55 1.0~1000 13.2~5642 7.97~0.25 5.28~0.26
SP04-0704 7.3x7.3x4.35 1.0~1000 12.9~5057 10.2~0.31 5.39~0.27
SP05-1206 12.3x12.3x6.0 1.0~120000 3.1~195000 23.6~0.069 15~0.06
SP05-1208 12.3x12.3x8.0 1.0~1000 4.07~2158 40~1.14 15.5~0.61

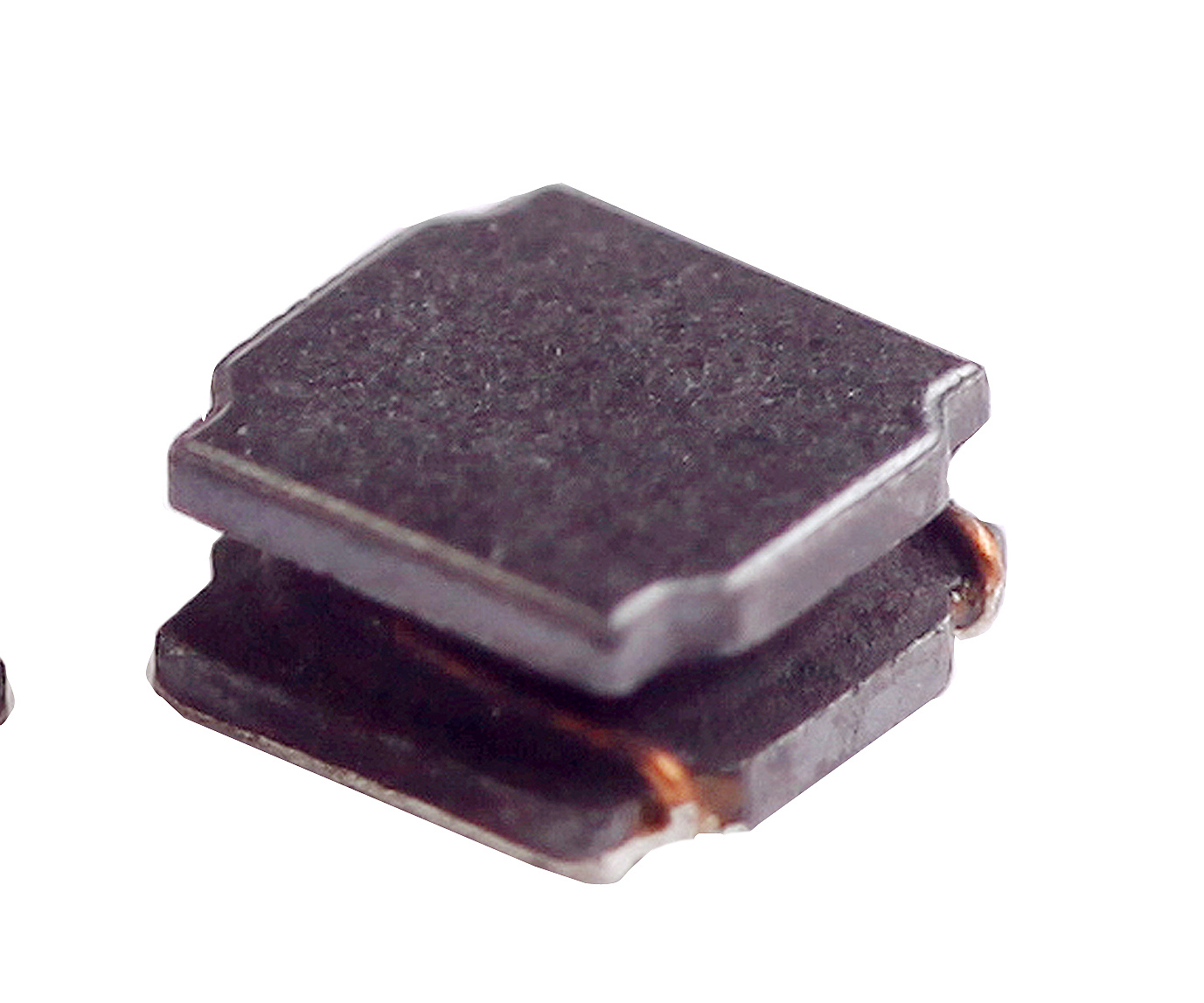

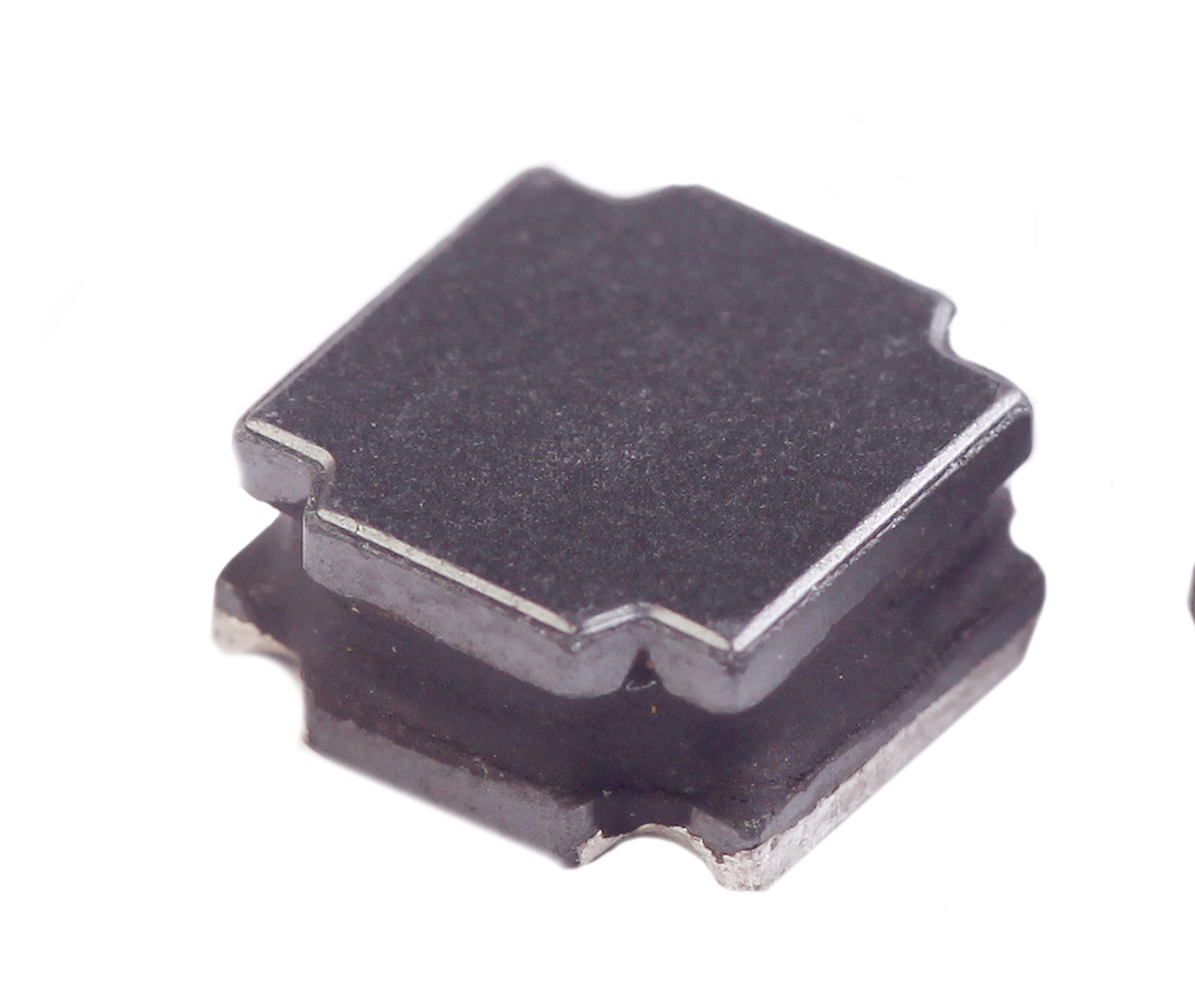

SP06-030012 3.0x3.0x1.2 0.22~100 17~2860 6.0~0.23 3.3~0.29
SP06-030015 3.0x3.0x1.5 0.50~150 30~3800 4.2~0.22 2.8~0.23
SP06-040018 4.0x4.0x1.8 0.47~220 14~4000 5.2~0.30 4.5~0.27
SP06-040020 4.0x4.0x2.0 0.24~100 11~1550 12.5~0.53 5.2~0.43
SP06-040026 4.0x4.0x2.6 1.0~47 24~300 3.8~0.55 3.3~0.90
SP06-040030 4.0x4.0x3.0 0.68~680 10~7580 8.0~0.23 5.1~0.19
SP06-050020 5.0x5.0x2.0 0.47~200 13~2000 6.7~0.33 5.0~0.45
SP06-050040 5.0x5.0x4.0 1.0~1000 12~6000 8.0~0.25 5.0~0.23
SP06-060020 6.0x6.0x2.0 0.68~47 17~430 7.8~0.90 4.8~0.90
SP06-060028 6.0x6.0x2.8 0.82~1000 12~5800 9.0~0.22 6.0~0.26
SP06-060045 6.0x6.0x4.5 0.47~1500 6~6500 16.5~0.27 6.6~0.24
SP06-080040 8.0x8.0x4.0 0.82~1000 8~2800 16.0~0.50 6.9~0.40
SP07-030012 3.0x3.0x1.2 1.5~10 64~395 4.1~1.45 2.9~1.15
SP07-040020 4.0x4.0x2.0 0.22~10 11~180 22~3.50 9.5~2.35
SP08-1304 12.95x9.4x3.5 10~1000 110~8400 2.4~0.1 2.0~0.05
SP08-1305 12.95x9.4x5.21 1.0~1000 9.0~3000 9.0~0.3 6.8~0.3
SP08-1311 12.95x9.4x11.43 10~1000 40~2000 8.0~0.8 3.5~0.10
SP08-1907 18.54x15.24x7.11 1.0~1000 9.0~1800 20~1.0 8.6~0.56
SP09-8028 8.0x8.0x3.1 2.5~220 22~1120 5.0~0.55 4.8~0.50
SP09-8038 8.0x8.0x4.0 1.8~100 15.6~410 7.0~1.05 6.8~0.88
SP09-8043 8.0x8.0x4.5 1.2~100 12.2~360 8.0~1.3 6.2~0.8
SP09-8058 8.0x8.0x6.0 2.8~100 15~175 4.7~0.8 6.9~1.4

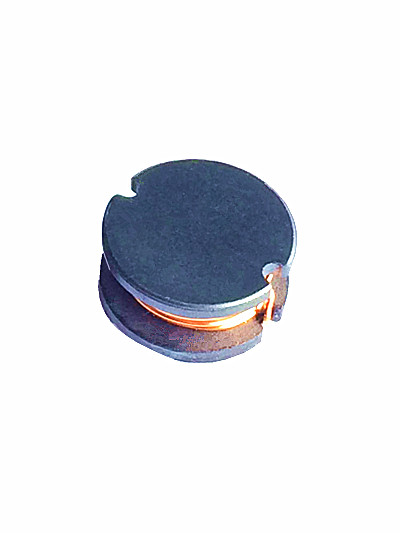

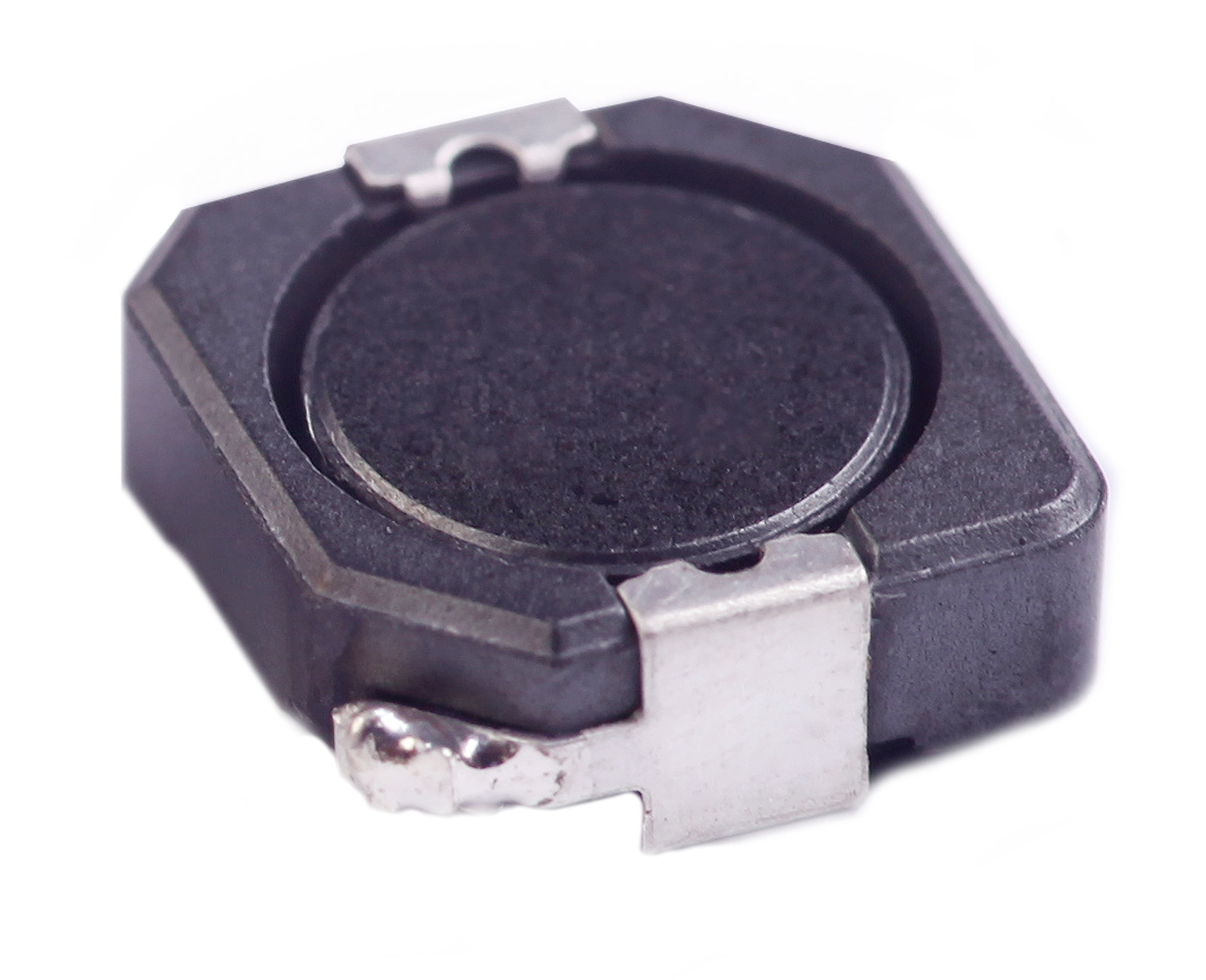

SP10-060028 6.2x6.2x3.0 4.7~100 36~620 1.6~0.42 2.5~0.64
SP10-060045 6.2x6.2x4.8 1.5~22 16~82 4.0~1.1 4.1~1.8
SP10-070032 7.2x7.2x3.4 3.3~1000 23~4780 1.9~0.13 1.9~0.13
SP10-070045 7.2x7.2x4.8 3.3~1000 20~2280 2.5~0.14 2.3~0.25
SP10-101045 10.4x10.4x4.8 3.3~1500 16~3400 4.9~0.22 3.7~0.26
SP10-101065 10.4x10.4x6.8 1.5~22 7~45 10.7~2.7 6.8~2.4
SP10-125065 12.8x12.8x6.85 2.0~150 11.7~273 10~1.0 6.2~1.2
SP11-130051 9.4x12.95x5.08 1.0~47 21~472 5.6~1.0 5.0~0.8
SP11-185076 15.24x18.54x7.62 10~1000 40~2010 8.0~0.8 3.9~0.53
SP12-1508 15x15x8.6 10~1000 14~990 14.7~1.4 7.4~0.86
SP12-1514 15x15x14.5 2.5~1000 7.0~625 30.5~1.63 7.8~0.77

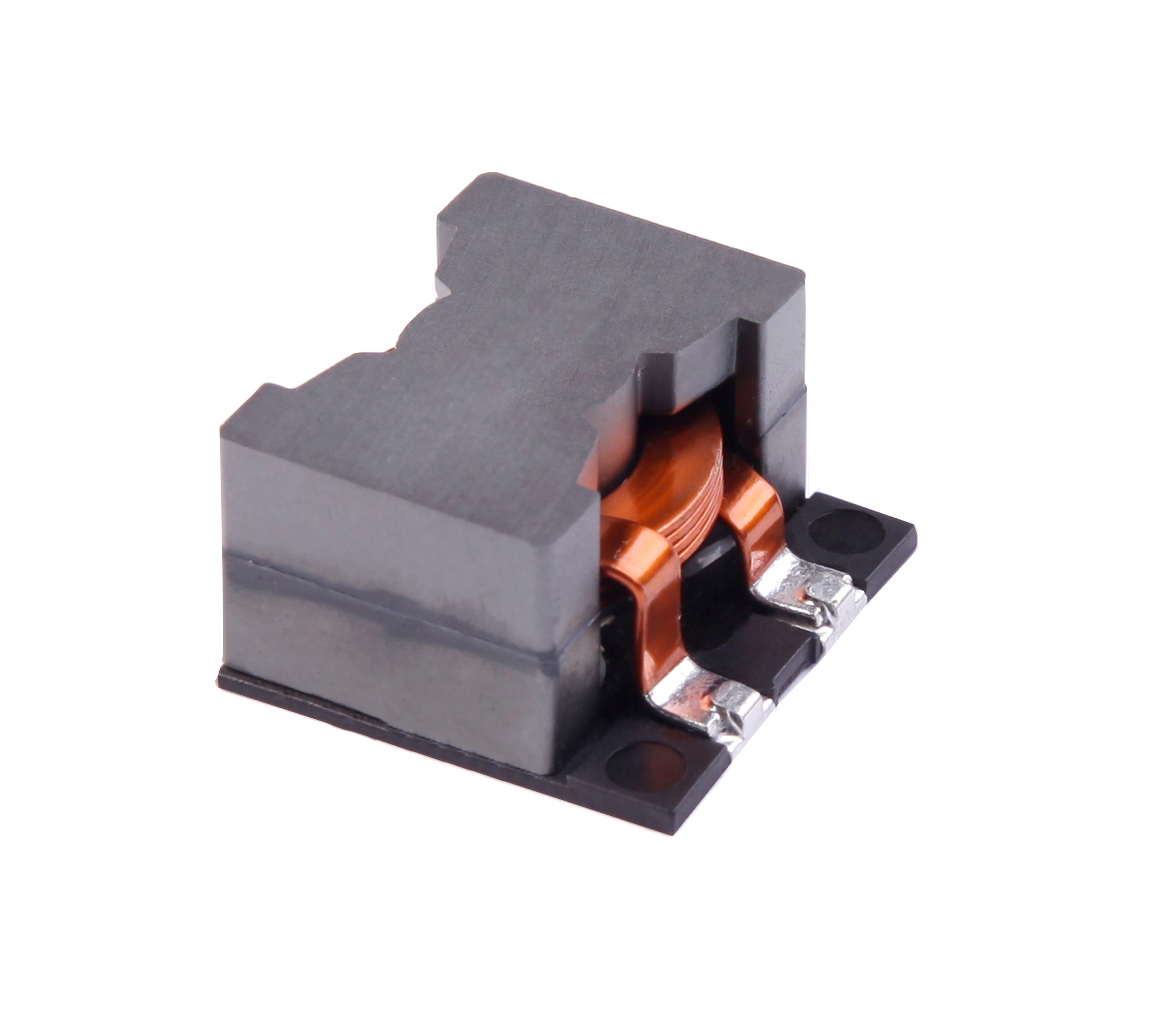

SP13-2816A 27.9x27.9x15.9 1.5~33 1.65 100~2.0 30
SP13-2816B 27.9x27.9x15.9 2.2~33 2.05 100~4.0 30
SP13-2820A 27.9x27.9x20 3.3~470 2.75~88 87~4.3 31~4.5

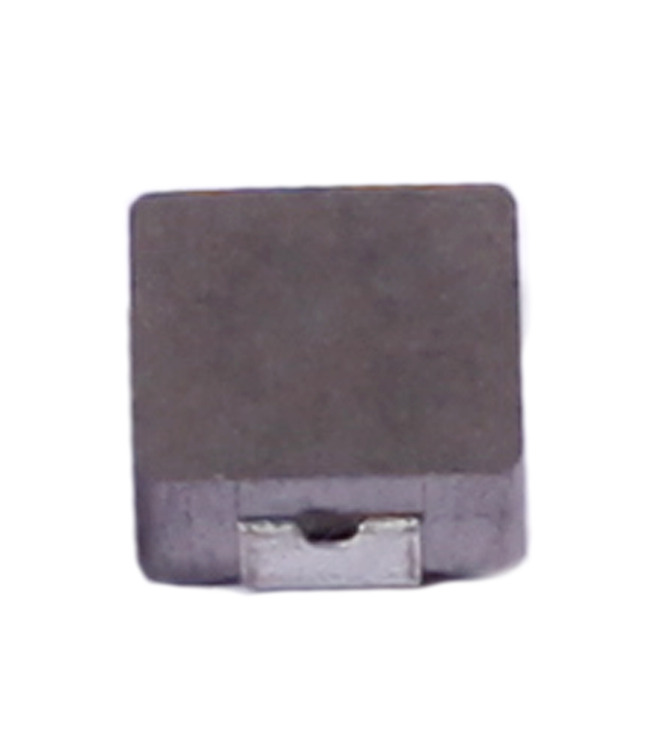

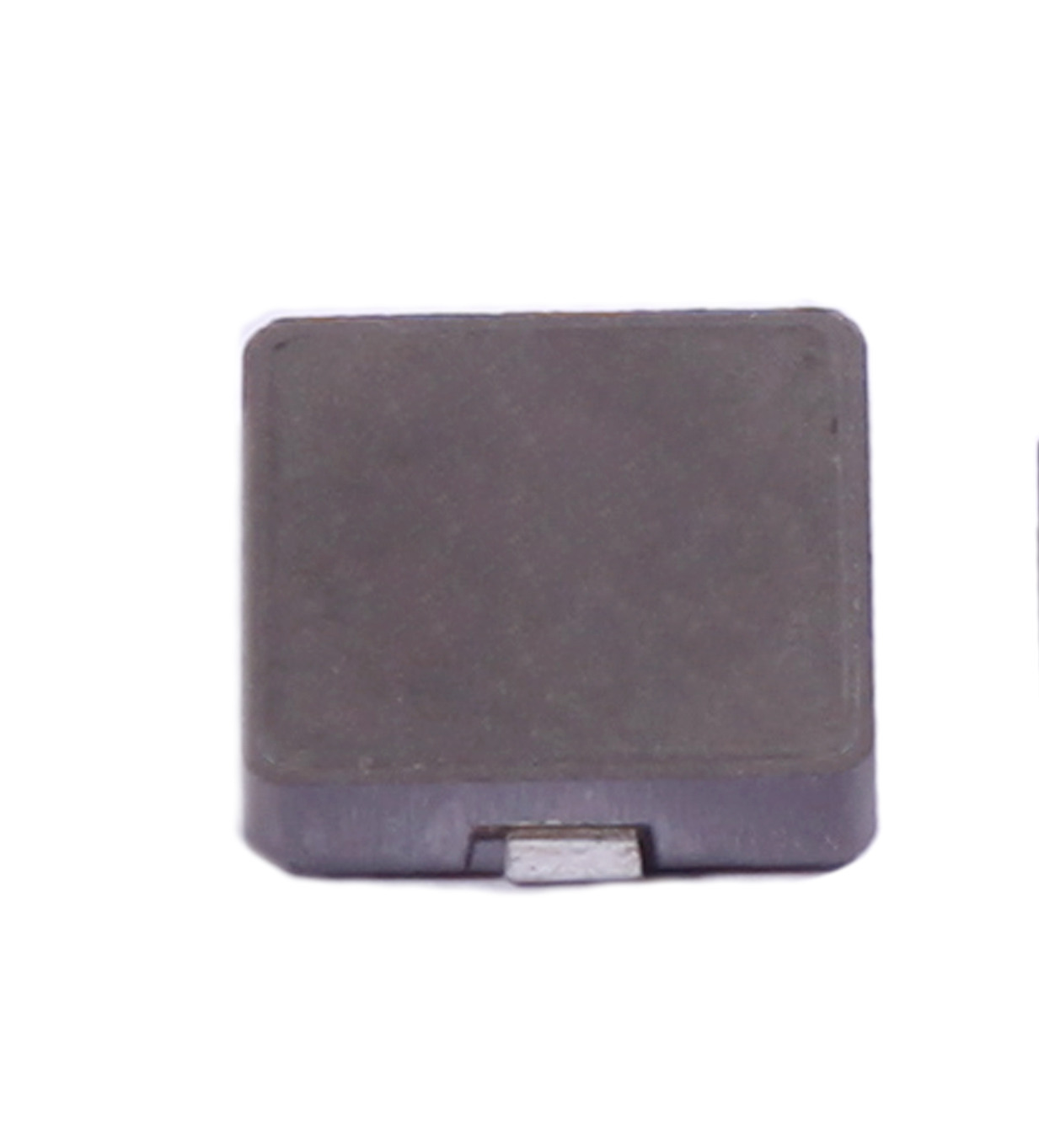

SP14-057018 5.4x5.2x1.8 0.47~10 9.0~155 15.5~3.0 10.5~2.5
SP14-057030 5.4x5.2x3.0 0.10~10 3.0~125 33.0~3.5 25.0~3.2
SP14-070024 7.0x6.6x2.4 0.22~22 3.0~240 34.0~2.5 21.0~2.0
SP14-070030 7.0x6.6x3.0 0.22~33 3.0~310 34.0~2.5 24.0~2.0
SP14-070040 7.0x6.6x4.0 0.22~22 1.8~125 35.0~4.0 33.0~3.5
SP14-138040 13.3x12.6x4.0 0.68~4.7 3.5~14.5 47.0~18.0 28.0~13.0
SP14-138050 13.3x12.6x5.0 0.68~47 1.55~130 46.5~5.0 33.0~3.0
SP14-138060 13.3x12.6x6.0 4.7~150 9.0~350 24.0~2.7 20.0~2.0

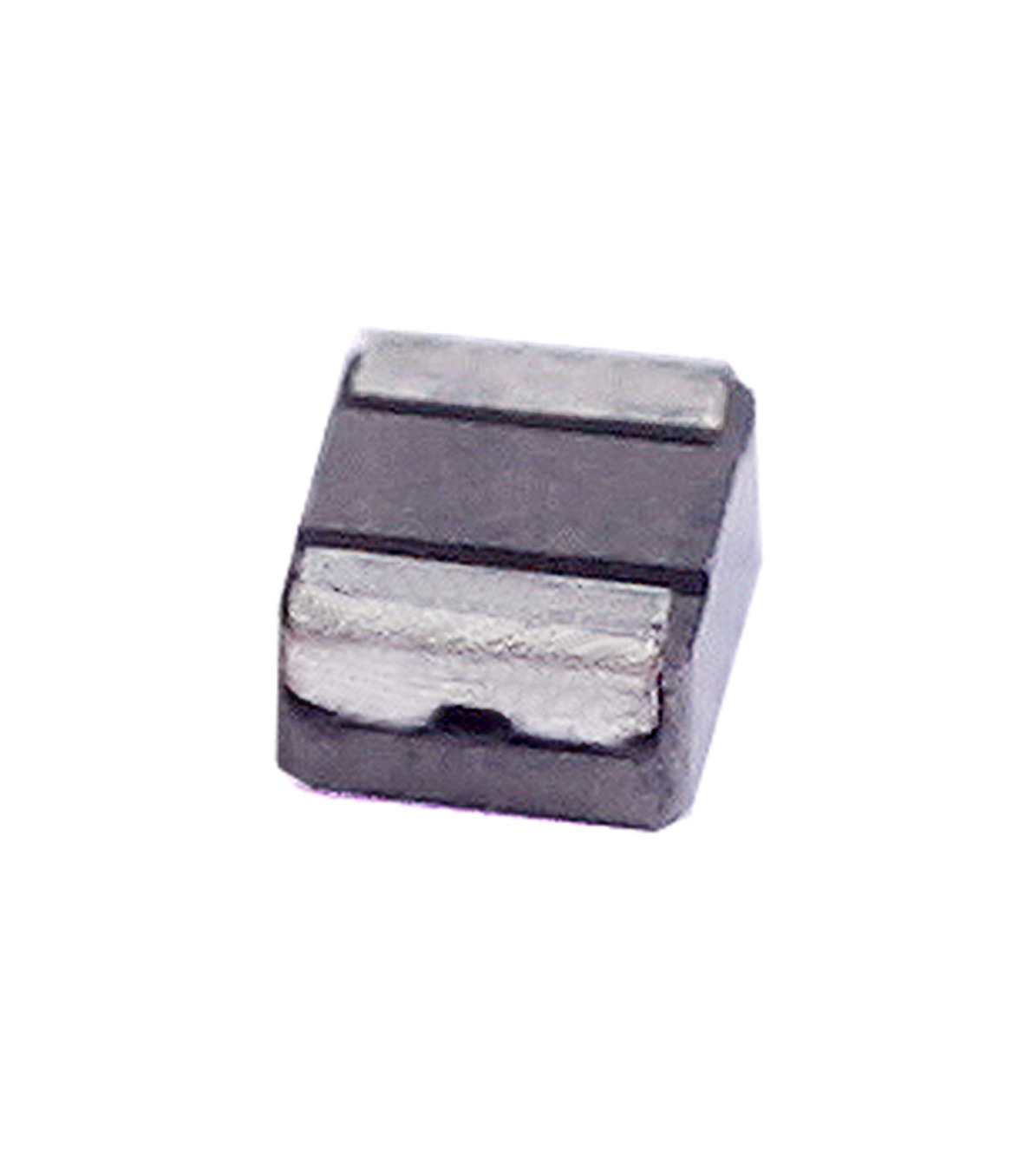

SP15-037012 3.4x3.0x1.2 0.12~10 5.5~360 14.0~1.2 8.0~0.8
SP15-037020 3.4x3.0x2.0 0.22~4.7 10.0~158 13.0~2.8 8.0~2.0
SP15-047012 4.4x4.0x1.2 0.33~3.3 14.5~111 12.0~3.9 8.0~2.4
SP15-047020 4.4x4.0x2.0 0.22~22 8.0~460 17.0~1.5 12.0~1.0
SP16-2010A 2.0x1.6x1.0 0.24~2.2 24.0~197 4.3~1.6 3.5~1.4
SP16-2010B 2.0x1.6x1.0 0.24~2.2 20.5~163 5.4~1.6 4.2~1.6
SP16-2012A 2.0x1.6x1.2 0.24~2.2 21.0~186 4.8~1.65 4.0~1.35
SP16-2012B 2.0x1.6x1.2 0.24~2.2 19.0~144 5.6~1.65 4.4~1.6
SP16-2510A 2.5x2.0x1.0 0.22~2.2 18.0~121 6.0~2.1 5.22~1.62
SP16-2510B 2.5x2.0x1.0 0.22~2.2 17.0~105 7.0~2.2 5.5~1.8
SP16-2512A 2.5x2.0x1.2 0.22~2.2 15.0~105 7.0~2.2 6.2~2.0
SP16-2512B 2.5x2.0x1.2 0.22~2.2 13.0~90 7.0~2.3 8.0~2.0

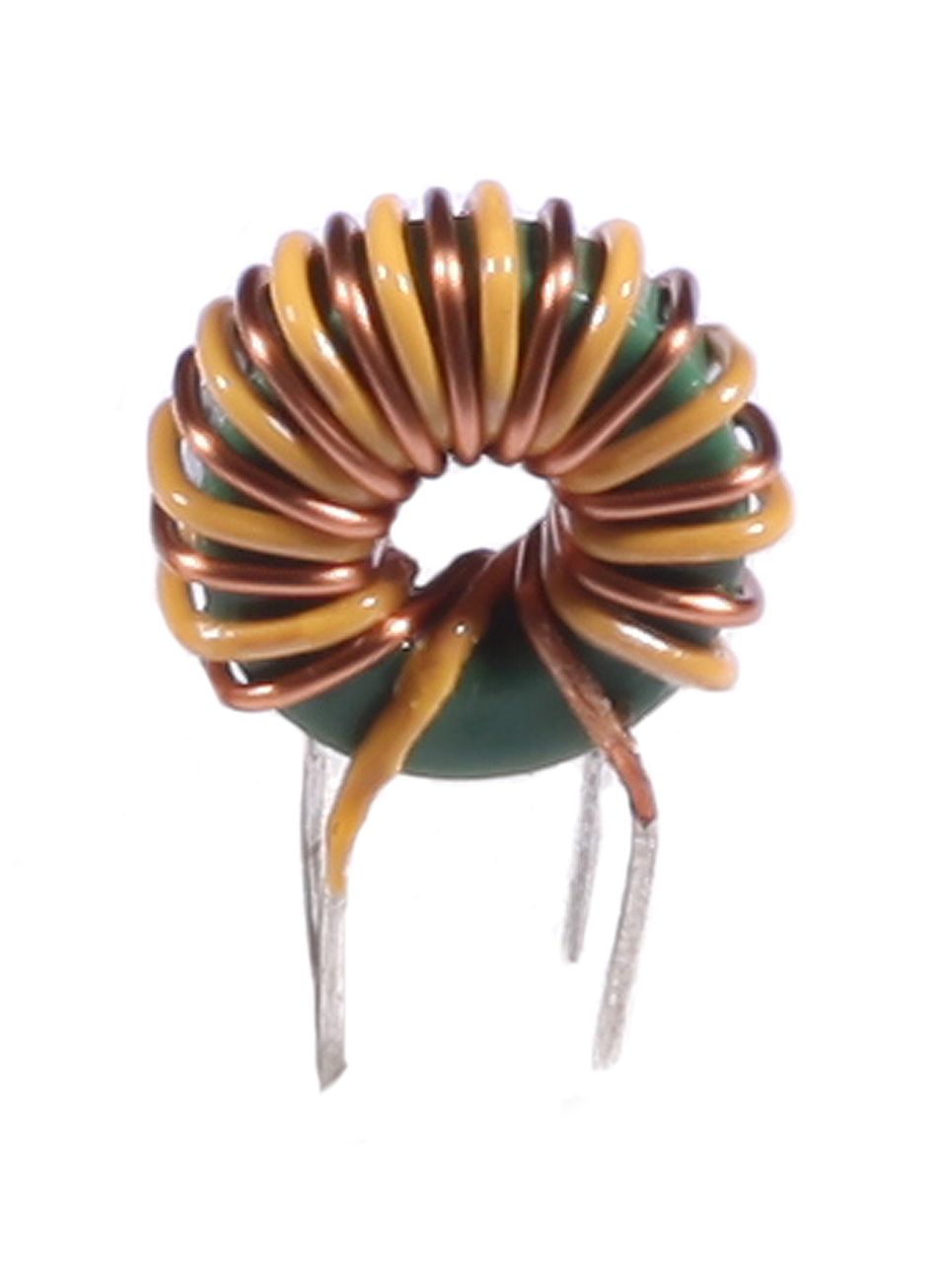

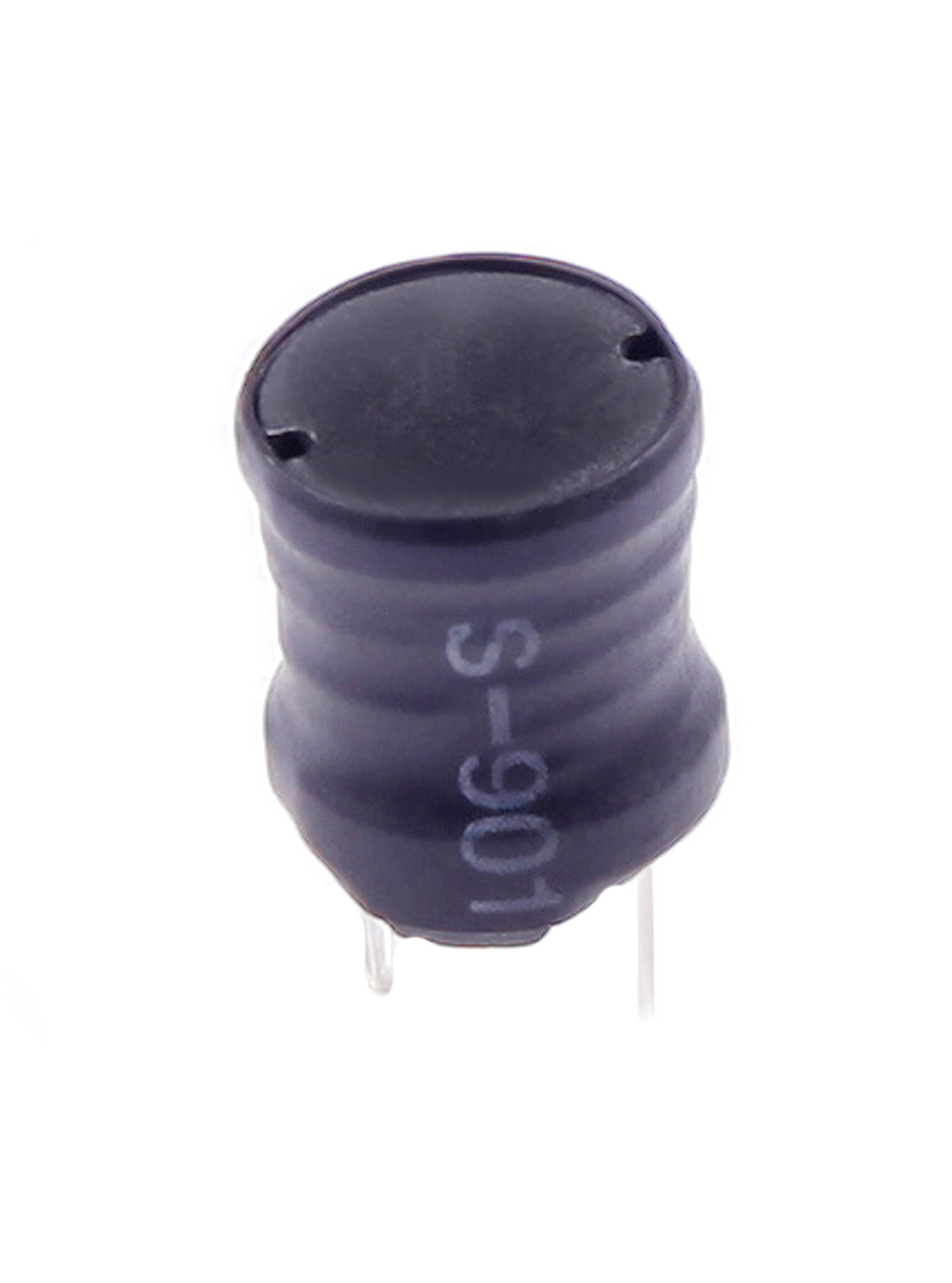

DP01-1721 16.8x21.3 10~560 8.2~471 28~3.7 9.0~0.8
DP01-2122 21.0x21.5 10~2200 7.0~1067 33~2.2 11.4~0.8
DP01-2627 26.0x27.0 47~4700 18~1429 25~2.5 9.0~1.0
DP01-4128 40.5x28.0 47~15000 15~3004 40~1.9 14.4~1.3
DP01-4138 40.5x38.0 220~15000 34~1750 21.5~2.6 13.5~1.8
DP01-5038 50.0x38.0 680~47000 76.5~5849 14.0~1.6 11.4~1.4
DP02-0609 6.0x8.5 3.3~1000 20~5626 6.0~0.35 5.7~0.35
DP02-0807 7.5x7.0 3.3~1000 16~3400 5.5~0.34 5.8~0.4
DP02-0908 9.0x8.0 3.3~1000 18~3800 12.3~0.72 5.5~0.38
DP02-0910 9.0x10 3.3~1000 13~2050 12~0.72 8.1~0.6
DP02-1014 9.5x13.5 3.3~1000 9~1469 11.7~0.7 8.8~0.74
DP02-1211 11.5x11 3.3~1000 9~1525 14~0.84 9.7~0.72

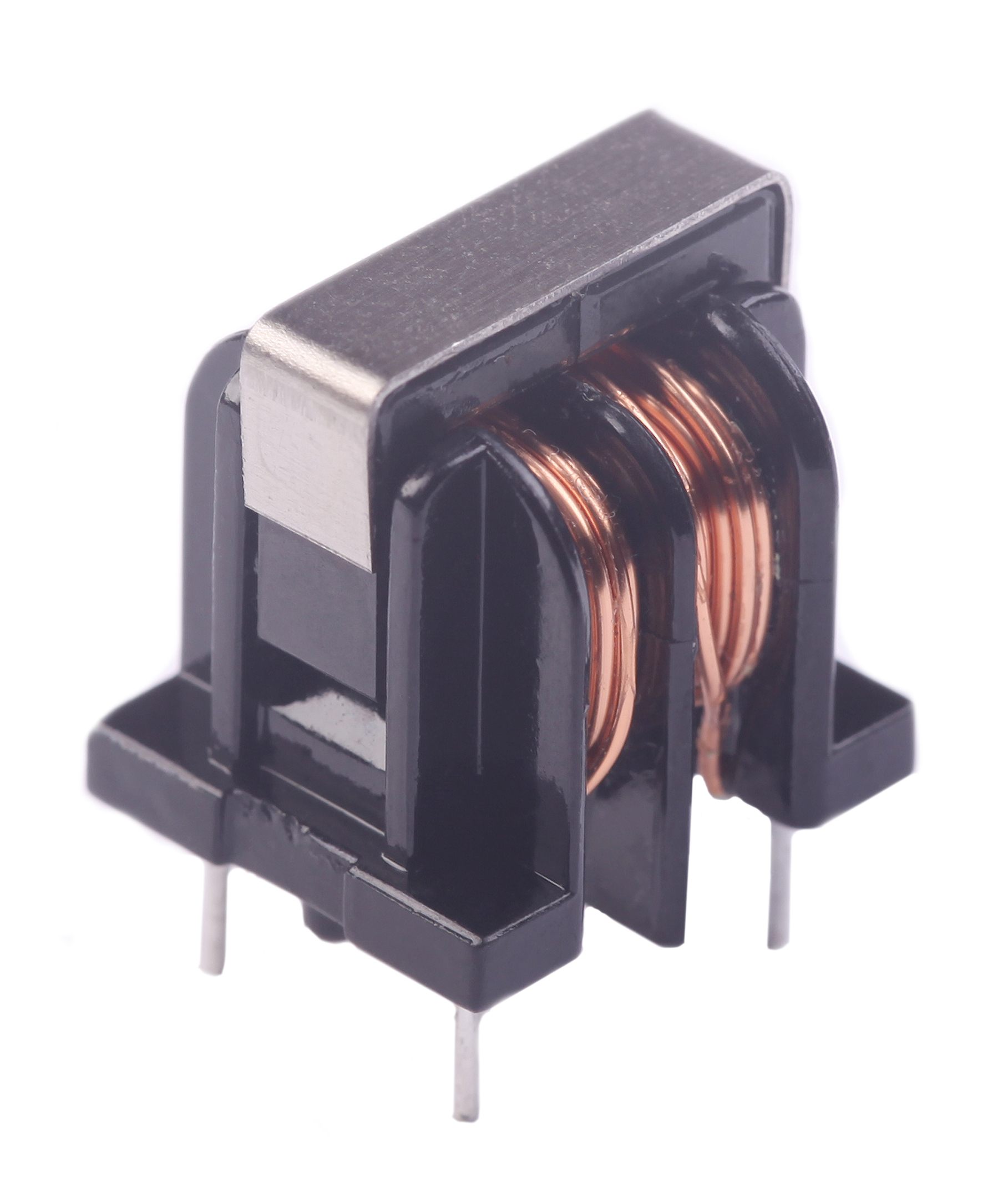

DCM01-1921 19x17x21 700~13600 76~1460
DCM01-2328 23x19.5x28 2100~22000 103~1100

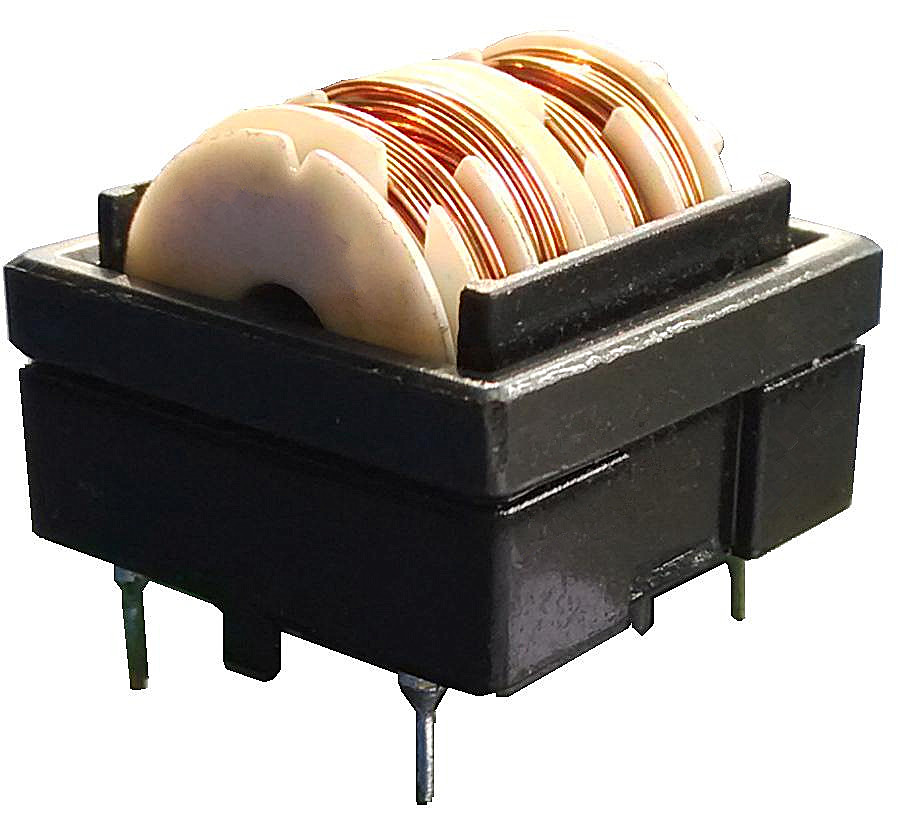

DCM02-2219 22x22x18.5 1800~47000 105~2870
DCM02-2622 26x26x21.5 2300~62000 87~2015
DCM03-2417 23.62x22.35x17.02 47~68000 16~9690
DCM04-1005 12.5x8.0x12.5 3.6~240 8~130
