Portable &Mobile Device

Image Type Dimensions  Inductance DCR   Isat     Irms  Rated
Current
Specification
L*W*H(mm) (uH) (mOHM) (A) (A) (A)

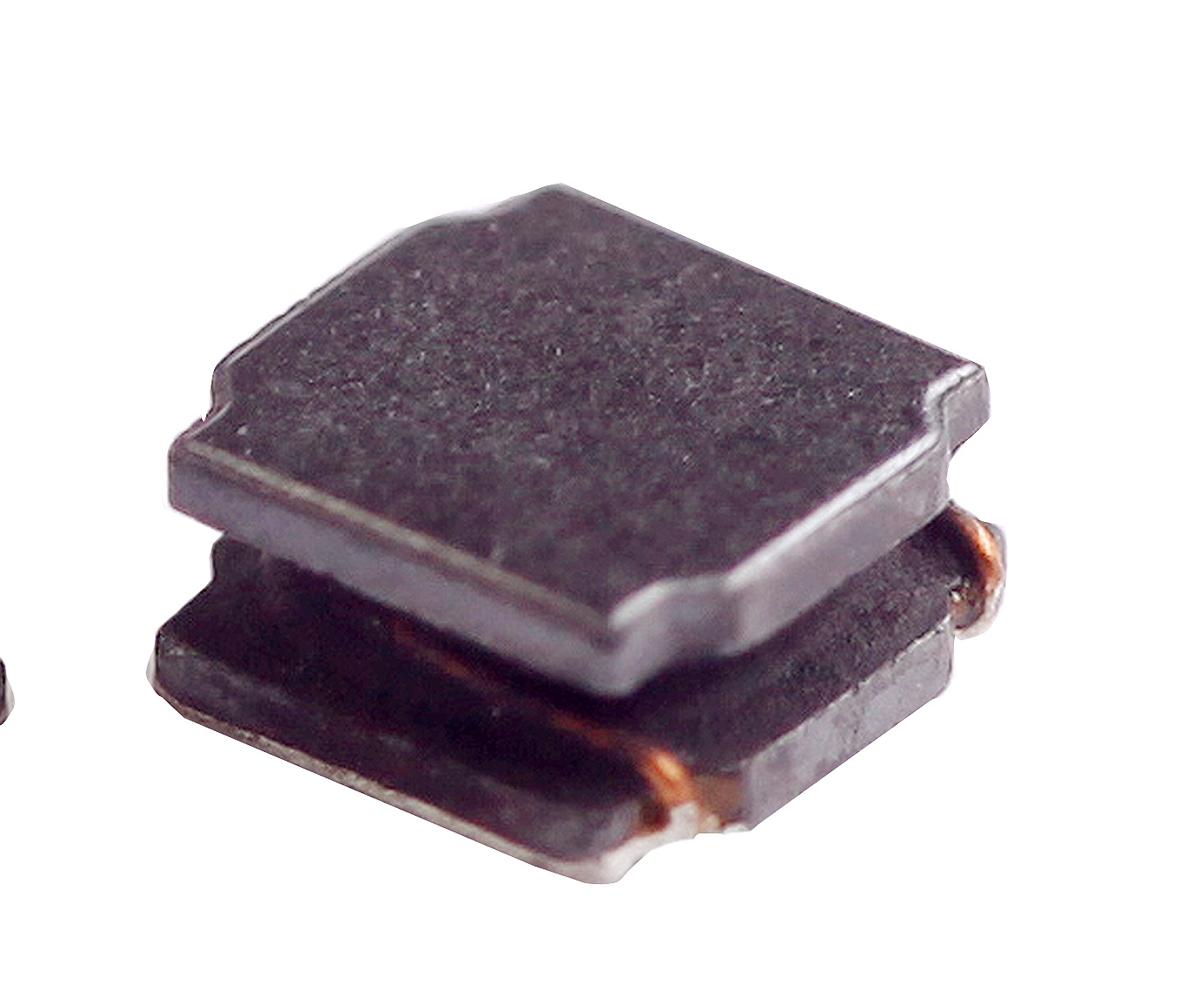

SP06-030012 3.0x3.0x1.2     0.22~100 17~2860 6.0~0.23 3.3~0.29
SP06-030015 3.0x3.0x1.5 0.50~150 30~3800 4.2~0.22 2.8~0.23
SP06-040018 4.0x4.0x1.8 0.47~220 14~4000 5.2~0.30 4.5~0.27
SP06-040020 4.0x4.0x2.0 0.24~100 11~1550 12.5~0.53 5.2~0.43
SP06-040026 4.0x4.0x2.6 1.0~47 24~300 3.8~0.55 3.3~0.90
SP06-040030 4.0x4.0x3.0 0.68~680 10~7580 8.0~0.23 5.1~0.19
SP06-050020 5.0x5.0x2.0 0.47~200 13~2000 6.7~0.33 5.0~0.45
SP06-050040 5.0x5.0x4.0 1.0~1000 12~6000 8.0~0.25 5.0~0.23
SP06-060020 6.0x6.0x2.0 0.68~47 17~430 7.8~0.90 4.8~0.90
SP06-060028 6.0x6.0x2.8 0.82~1000 12~5800 9.0~0.22 6.0~0.26
SP06-060045 6.0x6.0x4.5 0.47~1500 6~6500 16.5~0.27 6.6~0.24
SP06-080040 8.0x8.0x4.0 0.82~1000 8~2800 16.0~0.50 6.9~0.40

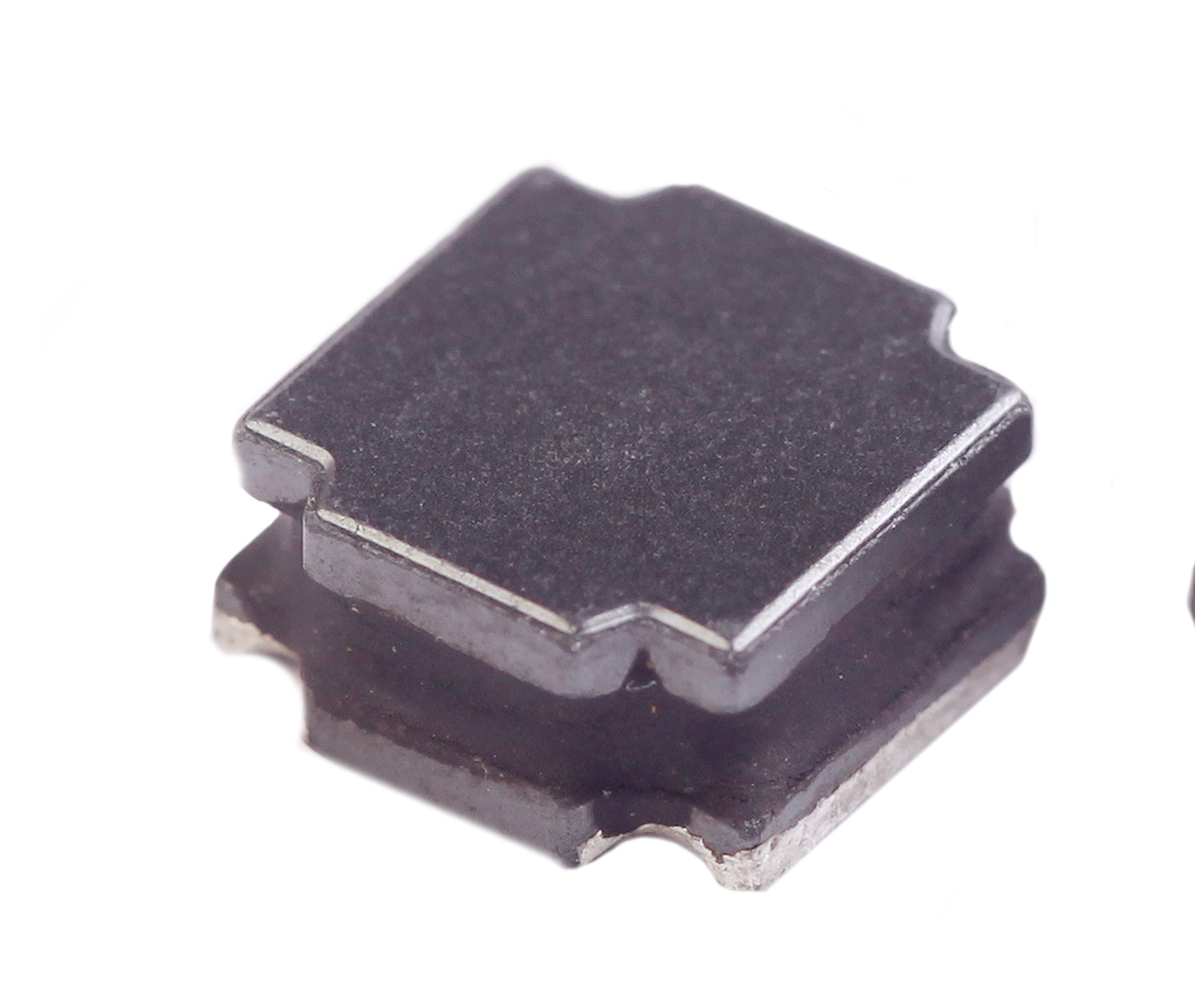

SP07-030012 3.0x3.0x1.2 1.5~10 64~395 4.1~1.45 2.9~1.15
SP07-040020 4.0x4.0x2.0 0.22~10 11~180 22~3.50 9.5~2.35

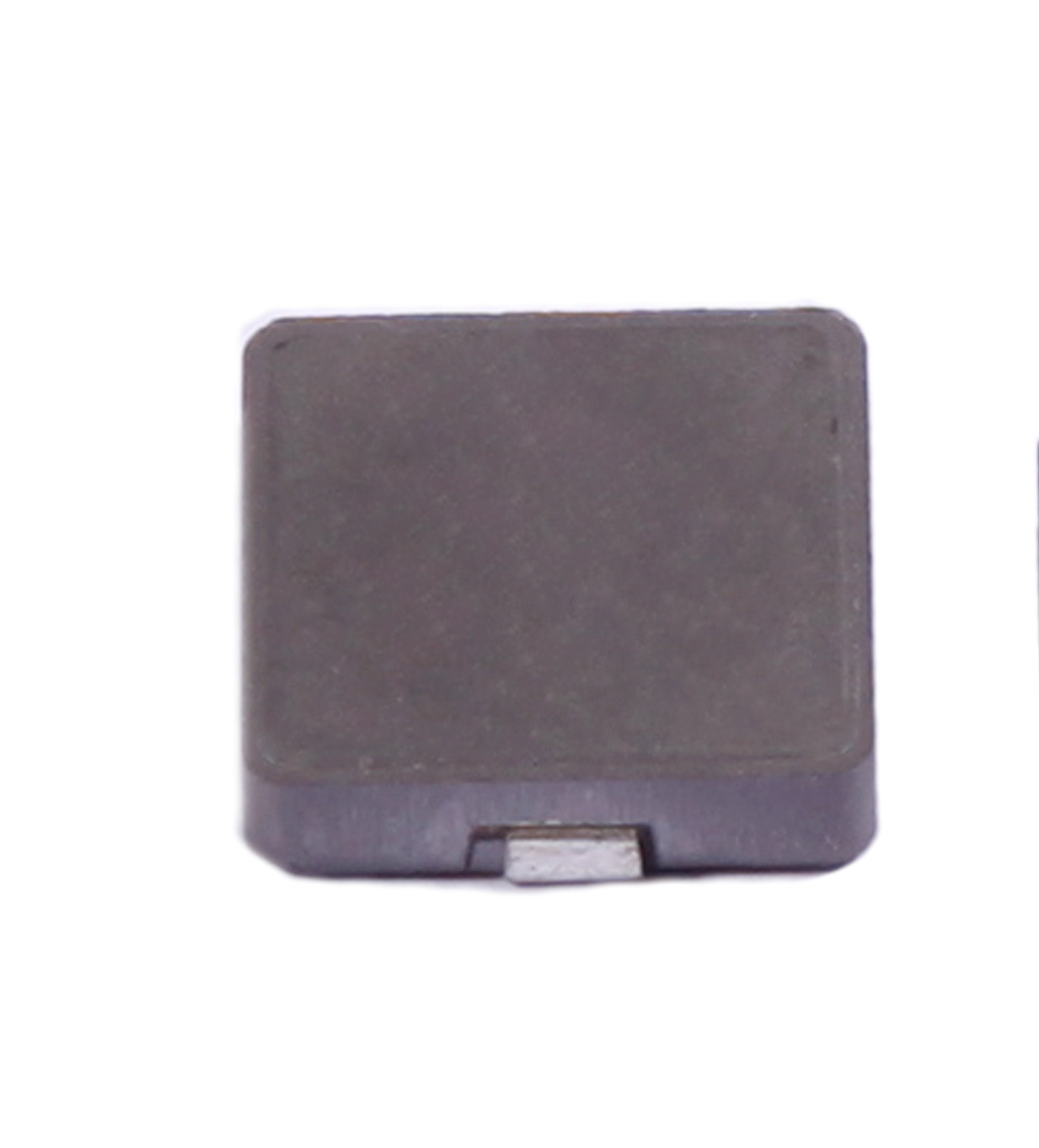

SP14-057018 5.4x5.2x1.8     0.47~10 9.0~155 15.5~3.0 10.5~2.5
SP14-057030 5.4x5.2x3.0 0.10~10 3.0~125 33.0~3.5 25.0~3.2
SP14-070024 7.0x6.6x2.4 0.22~22 3.0~240 34.0~2.5 21.0~2.0
SP14-070030 7.0x6.6x3.0 0.22~33 3.0~310 34.0~2.5 24.0~2.0
SP14-070040 7.0x6.6x4.0 0.22~22 1.8~125 35.0~4.0 33.0~3.5
SP14-138040 13.3x12.6x4.0 0.68~4.7 3.5~14.5 47.0~18.0 28.0~13.0
SP14-138050 13.3x12.6x5.0 0.68~47 1.55~130 46.5~5.0 33.0~3.0
SP14-138060 13.3x12.6x6.0 4.7~150 9.0~350 24.0~2.7 20.0~2.0
SP15-037012 3.4x3.0x1.2           0.12~10 5.5~360 14.0~1.2 8.0~0.8
SP15-037020 3.4x3.0x2.0 0.22~4.7 10.0~158 13.0~2.8 8.0~2.0
SP15-047012 4.4x4.0x1.2  0.33~3.3 14.5~111 12.0~3.9 8.0~2.4
SP15-047020 4.4x4.0x2.0 0.22~22 8.0~460 17.0~1.5 12.0~1.0

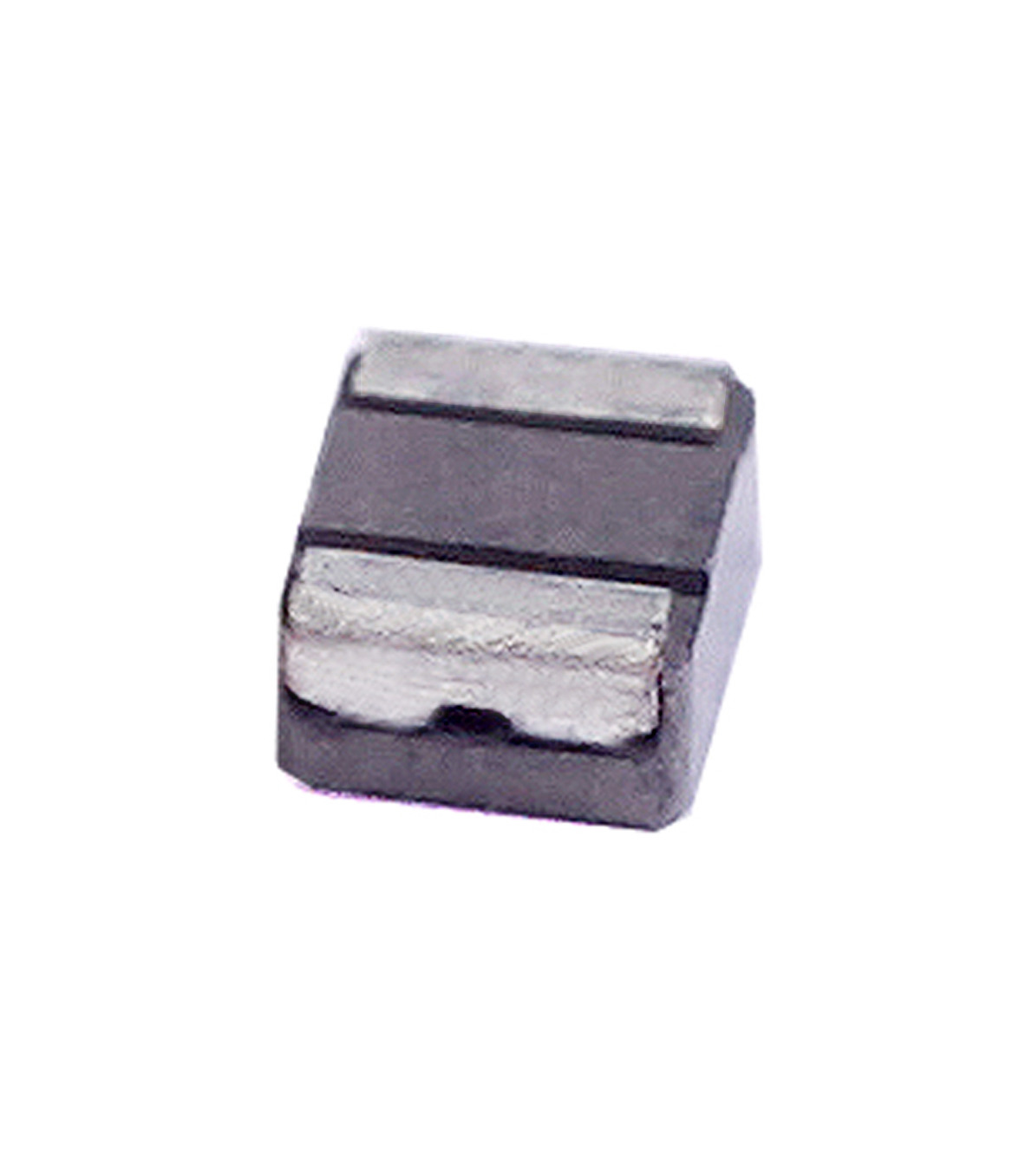

SP16-2010A 2.0x1.6x1.0 0.24~2.2 24.0~197 4.3~1.6 3.5~1.4
SP16-2010B 2.0x1.6x1.0 0.24~2.2 20.5~163 5.4~1.6 4.2~1.6
SP16-2012A 2.0x1.6x1.2 0.24~2.2 21.0~186 4.8~1.65 4.0~1.35
SP16-2012B 2.0x1.6x1.2 0.24~2.2 19.0~144 5.6~1.65 4.4~1.6
SP16-2510A 2.5x2.0x1.0 0.22~2.2 18.0~121 6.0~2.1 5.22~1.62
SP16-2510B 2.5x2.0x1.0 0.22~2.2 17.0~105 7.0~2.2 5.5~1.8
SP16-2512A 2.5x2.0x1.2 0.22~2.2 15.0~105 7.0~2.2 6.2~2.0
SP16-2512B 2.5x2.0x1.2 0.22~2.2 13.0~90 7.0~2.3 8.0~2.0

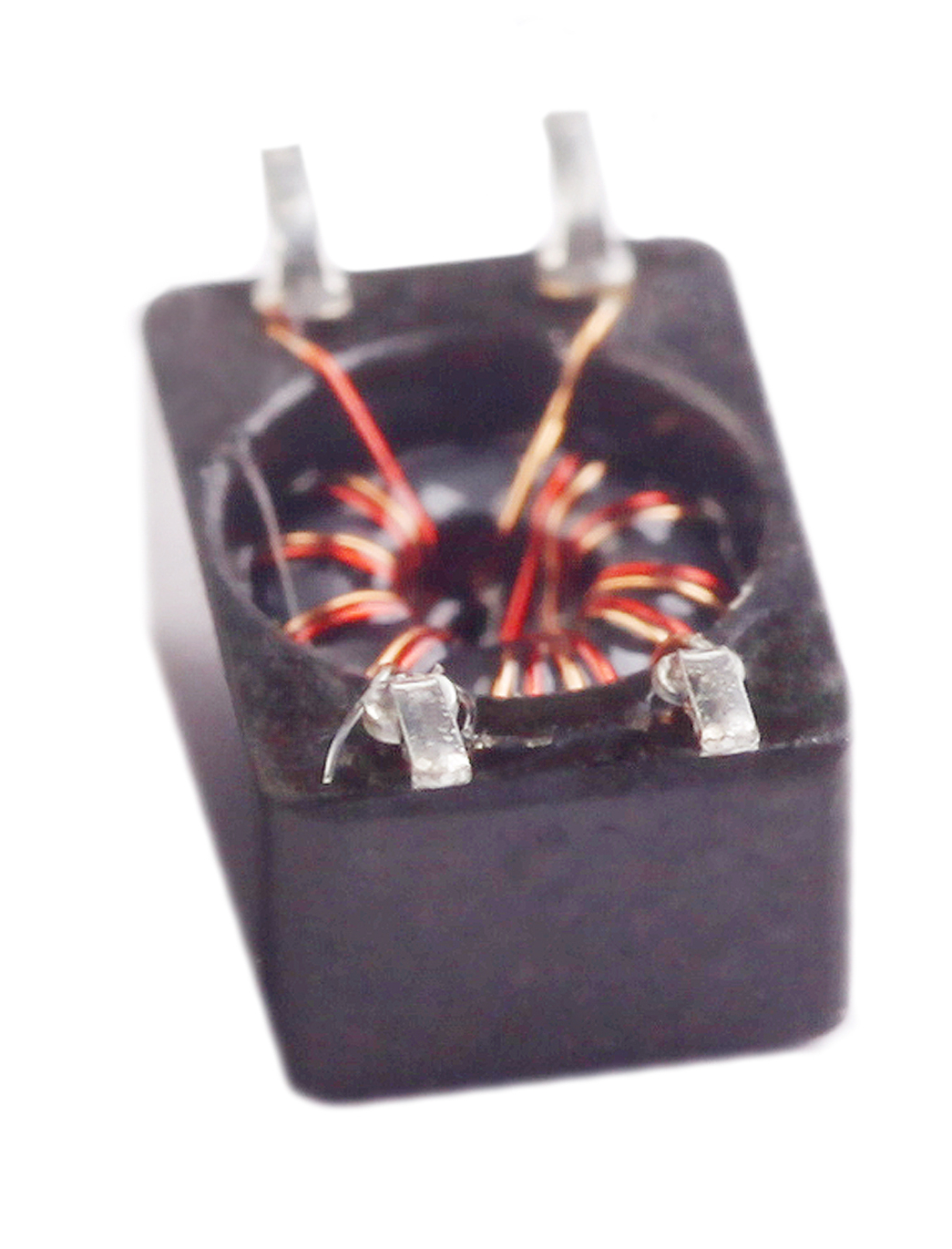

DCM04-1005 12.5x8.0x12.5 3.6~240 8~130     1.7~0.45
SCM01-1005 9.5x5.65x4.9 11~4700 120~700     0.7~0.2
