Power Supply

Image Type Dimensions? Inductance DCR ??Isat??? ?Irms? Rated?
Current?		 Specification
L*W*H(mm) (uH) (mOHM) (A) (A) (A)

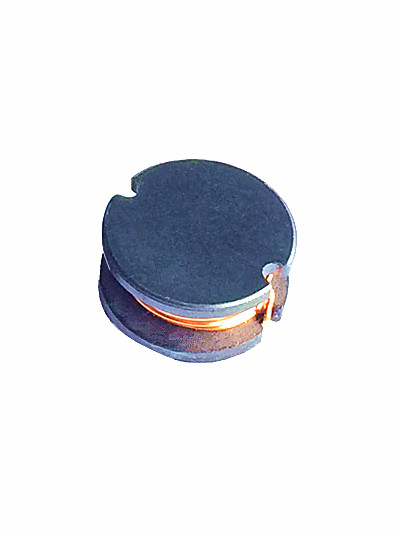

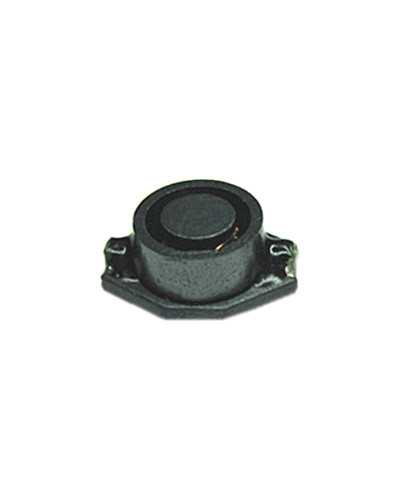

SP01-0603 6.2x6.3x3.0 2.5~100 17.6~520 2.6~0.4 2.6~0.4 ?
SP01-1003 10.3x10.5
x3.0		 0.8~150 5.7~871 9.0~0.7 6.5~0.51 ?
SP01-1004 10.3x10.5
x4.0		 1.0~1000 6.0~2853 12.1~0.46 10~0.45 ?
SP01-1005 10.3x10.5
x5.0		 0.68~330 5.5~815 13.5~0.75 9.5~0.73 ?

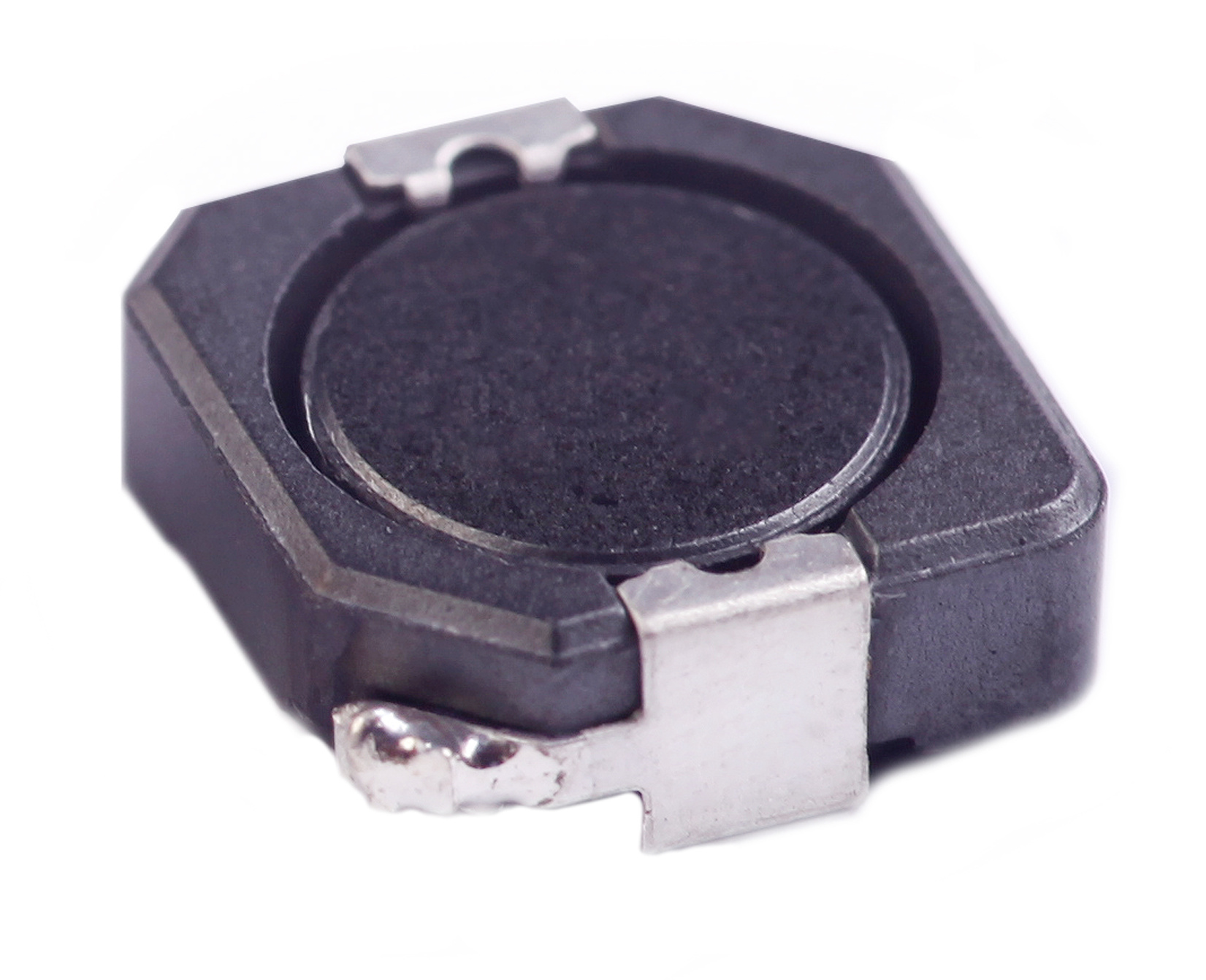

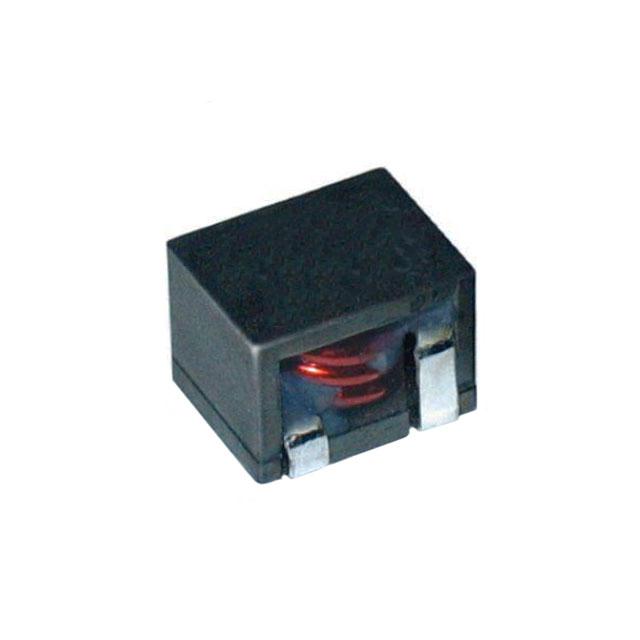

SP02-1108 9.2x10.8
x8.0		 0.30~6.8 0.68~7.7 42.5~8.5 47~9.6 ?

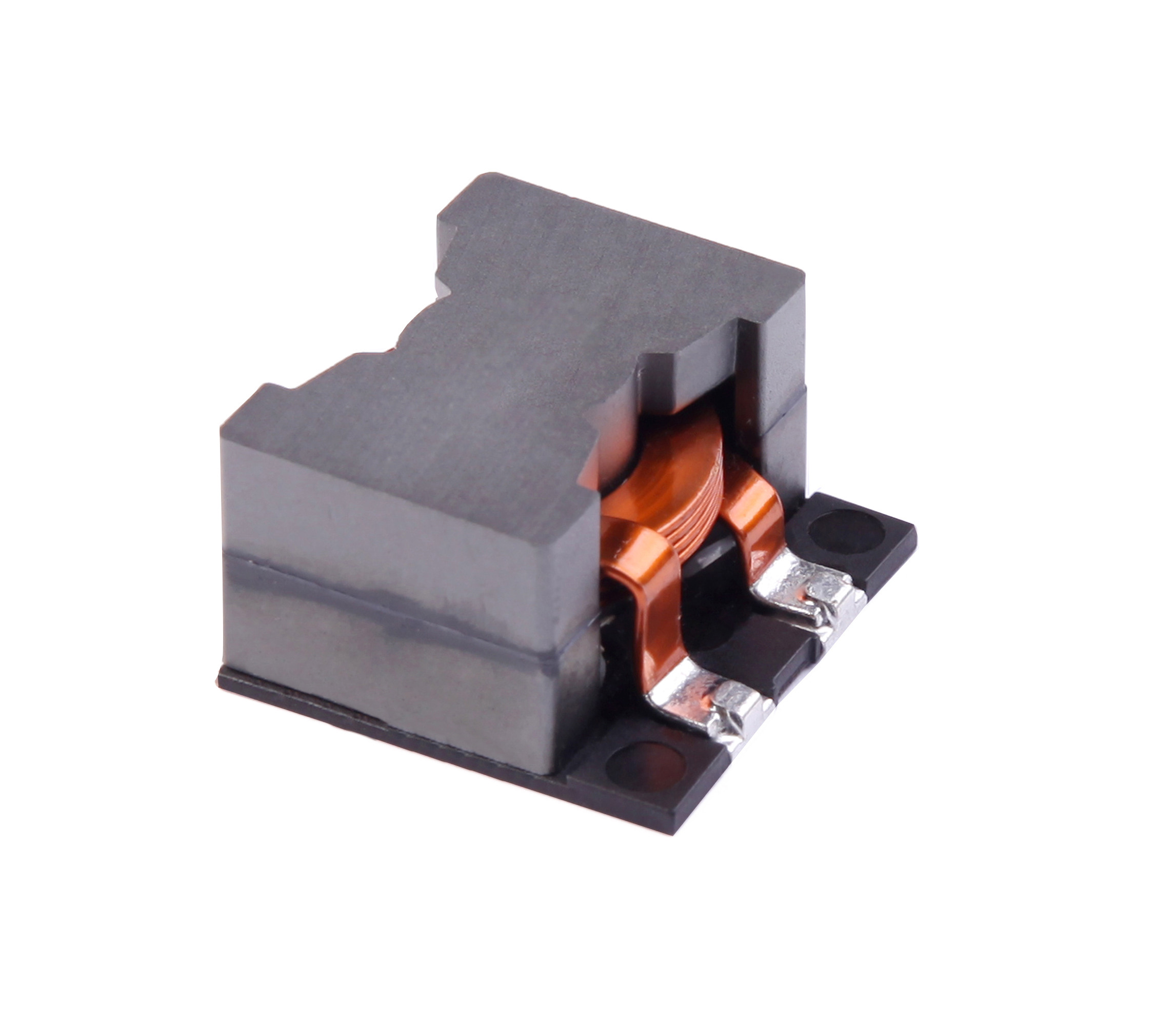

SP03-1006 9.8x9.8x5.8 1.5~2200 18~7600 10~0.36 6.4~0.16 ?
SP03-1307 13.5x13.5
x7.3		 1.5~1000 5.0~1600 20~1.0 9.5~0.65 ?

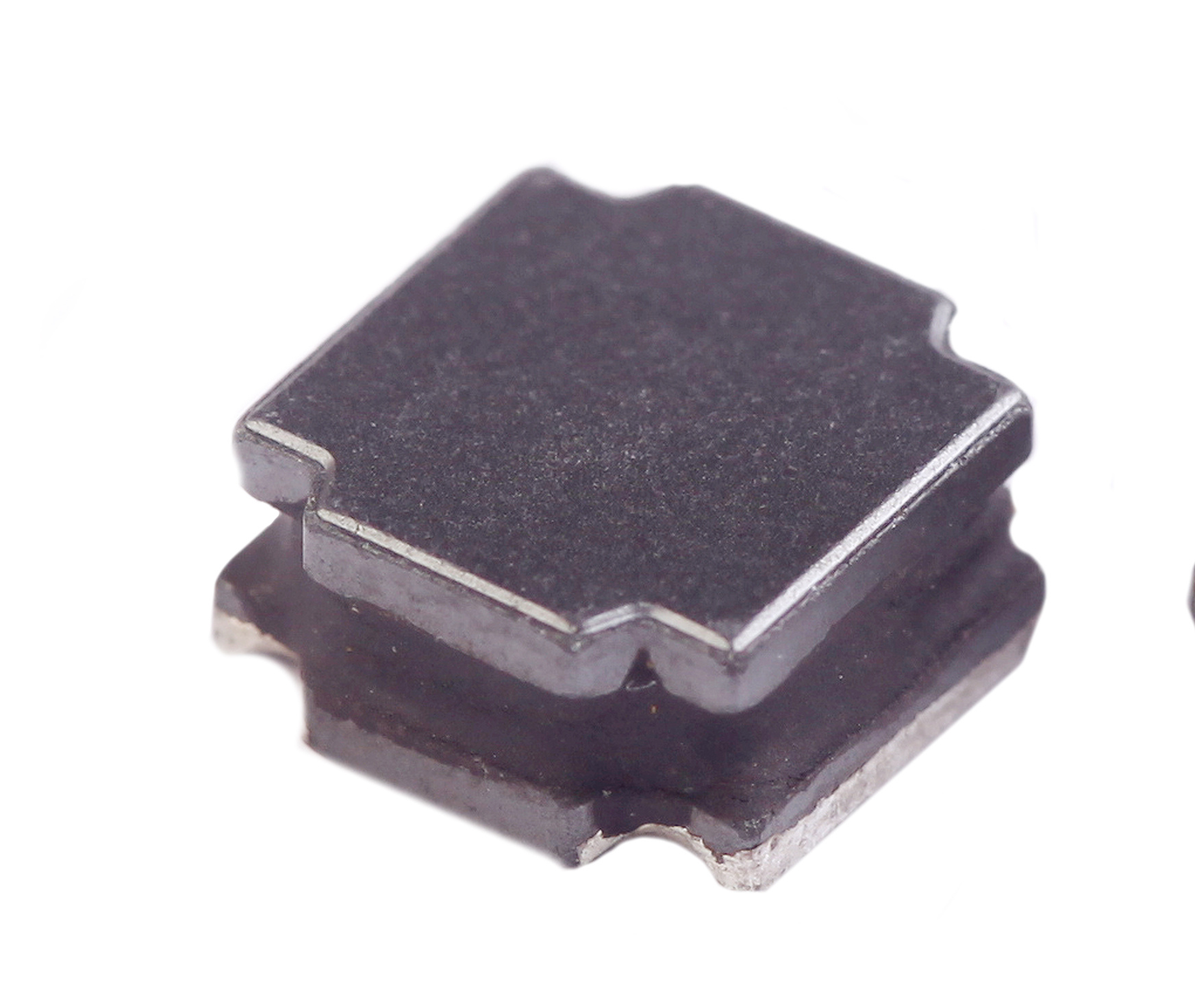

SP04-0703 7.3x7.3x
3.55		 1.0~1000 13.2~5642 7.97~0.25 5.28~0.26 ?
SP04-0704 7.3x7.3x4.35 1.0~1000 12.9~5057 10.2~0.31 5.39~0.27 ?

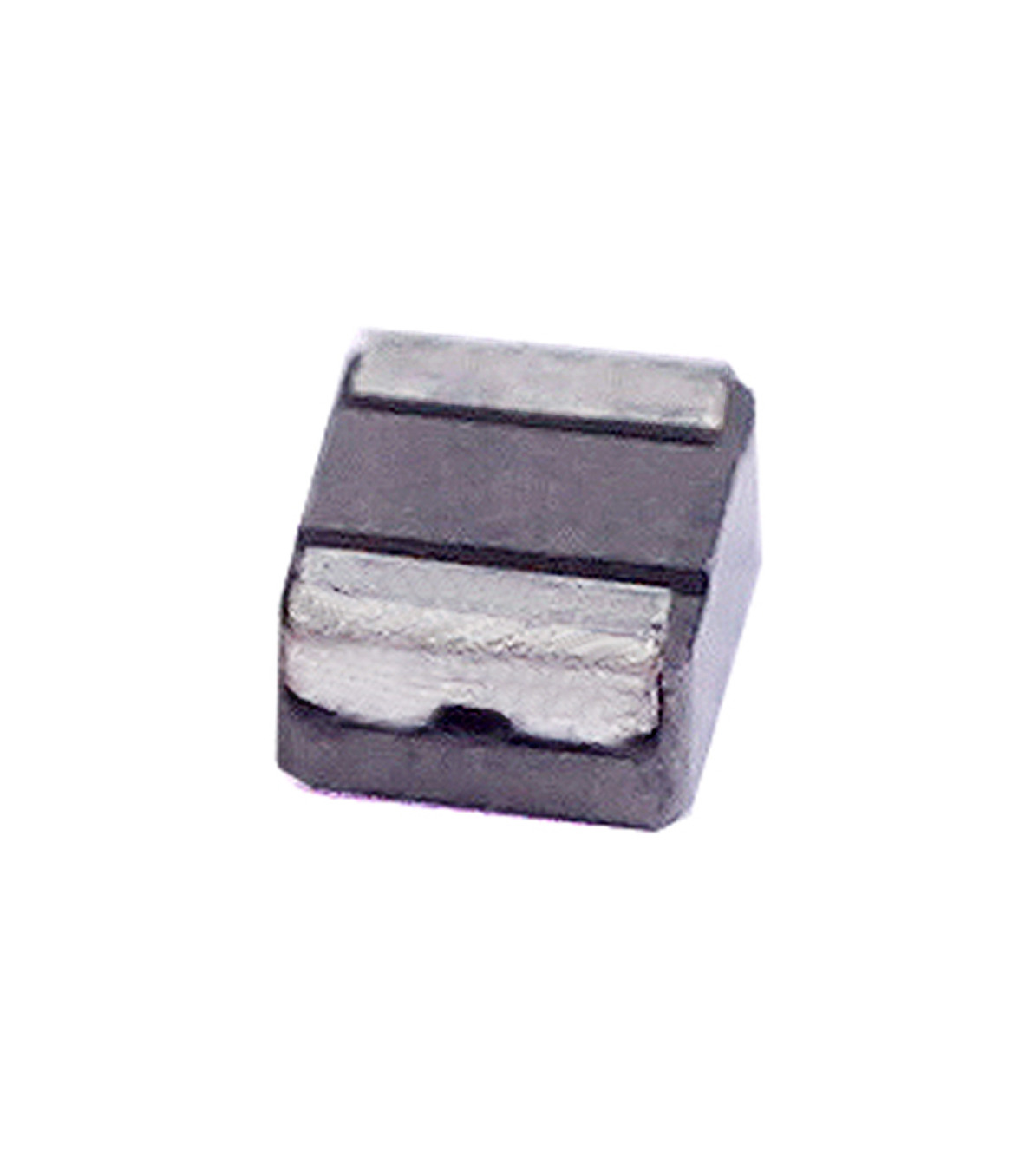

SP05-1206 12.3x12.3
x6.0		 1.0~120000 3.1~195000 23.6~0.069 15~0.06 ?
SP05-1208 12.3x12.3
x8.0		 1.0~1000 4.07~2158 40~1.14 15.5~0.61 ?

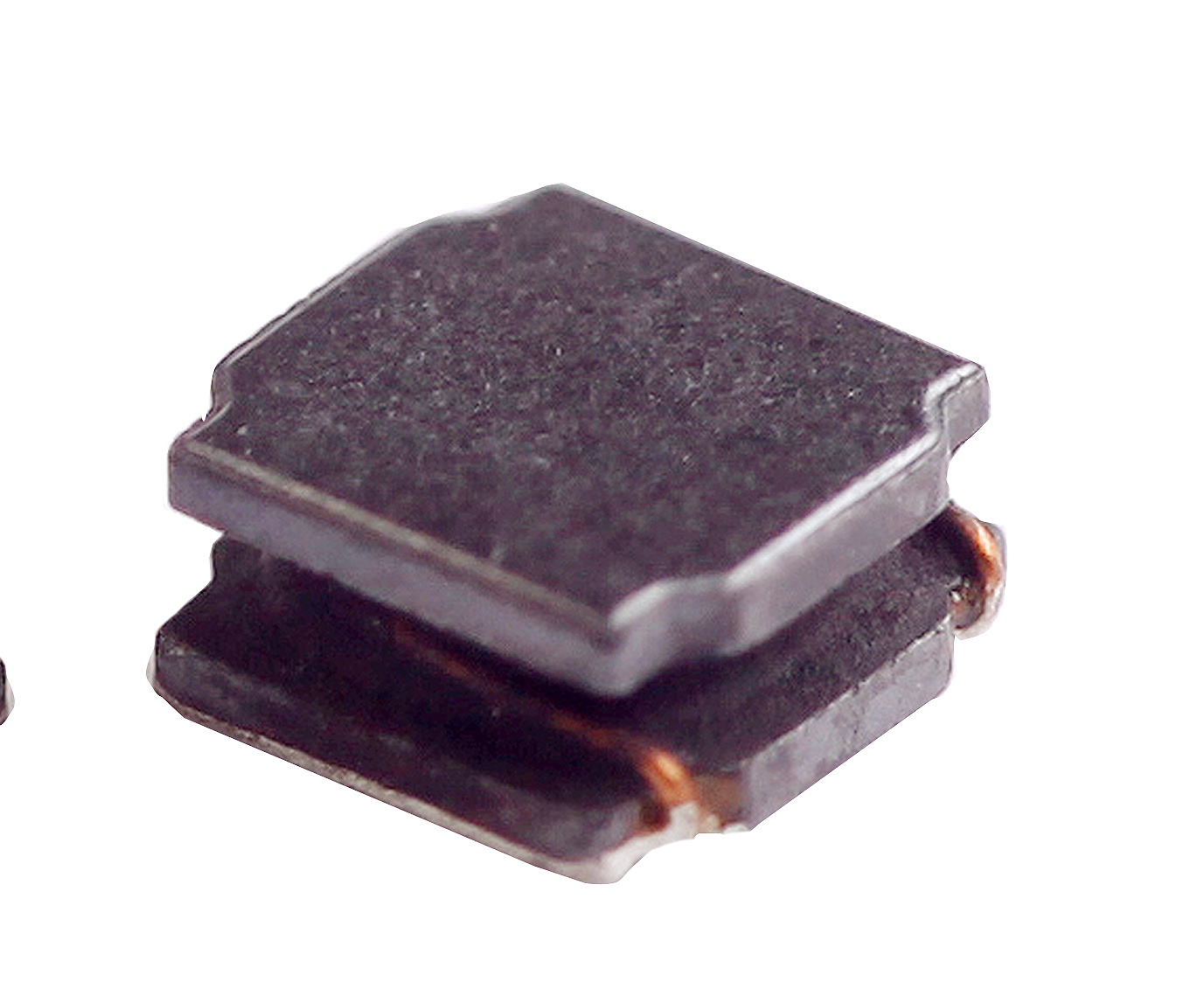

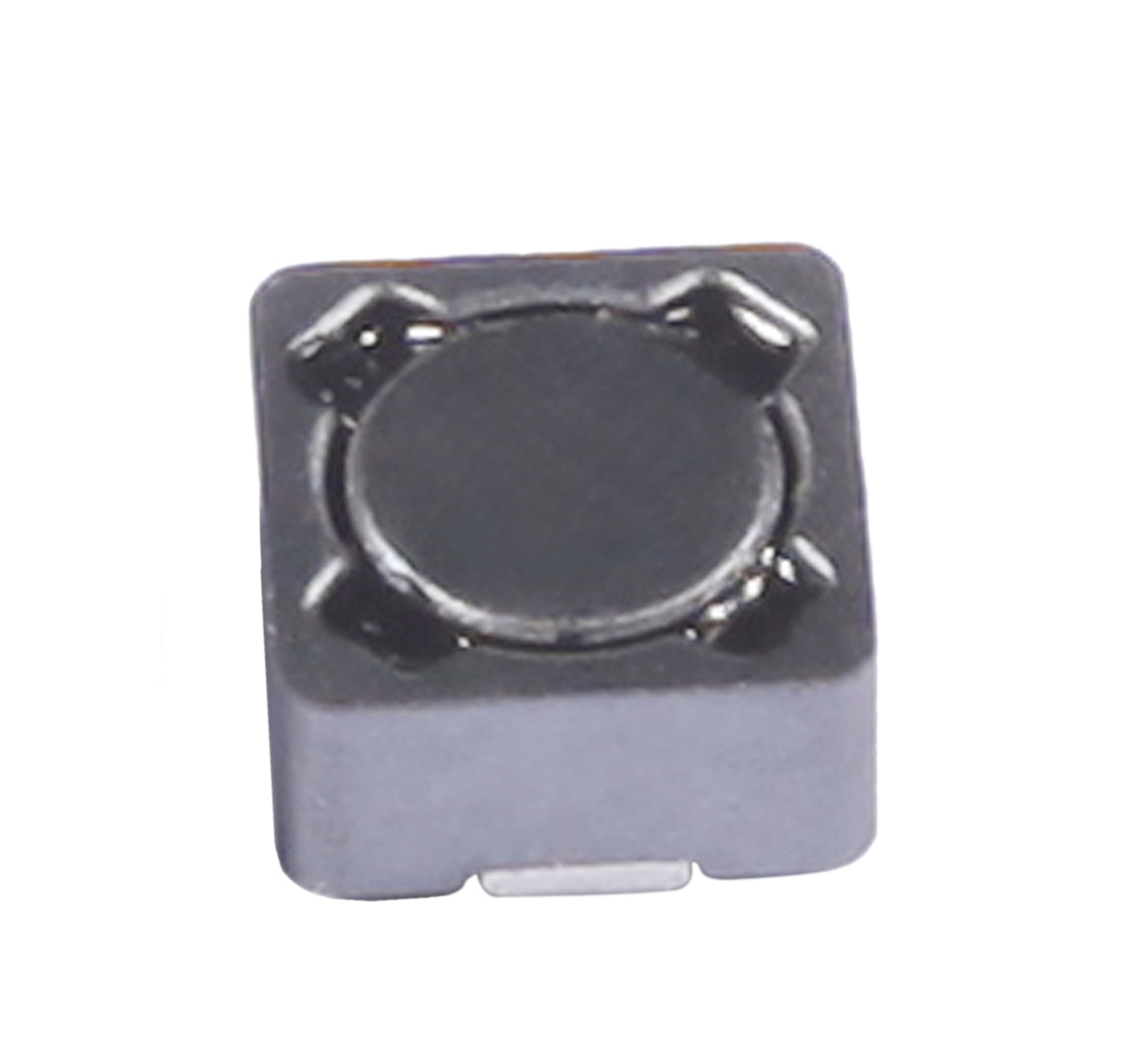

SP06-030012 3.0x3.0x1.2 0.22~100 17~2860 6.0~0.23 3.3~0.29 ?
SP06-030015 3.0x3.0x1.5 0.50~150 30~3800 4.2~0.22 2.8~0.23 ?
SP06-040018 4.0x4.0x1.8 0.47~220 14~4000 5.2~0.30 4.5~0.27 ?
SP06-040020 4.0x4.0x2.0 0.24~100 11~1550 12.5~0.53 5.2~0.43 ?
SP06-040026 4.0x4.0x2.6 1.0~47 24~300 3.8~0.55 3.3~0.90 ?
SP06-040030 4.0x4.0x3.0 0.68~680 10~7580 8.0~0.23 5.1~0.19 ?
SP06-050020 5.0x5.0x2.0 0.47~200 13~2000 6.7~0.33 5.0~0.45 ?
SP06-050040 5.0x5.0x4.0 1.0~1000 12~6000 8.0~0.25 5.0~0.23 ?
SP06-060020 6.0x6.0x2.0 0.68~47 17~430 7.8~0.90 4.8~0.90 ?
SP06-060028 6.0x6.0x2.8 0.82~1000 12~5800 9.0~0.22 6.0~0.26 ?
SP06-060045 6.0x6.0x4.5 0.47~1500 6~6500 16.5~0.27 6.6~0.24 ?
SP06-080040 8.0x8.0x4.0 0.82~1000 8~2800 16.0~0.50 6.9~0.40 ?

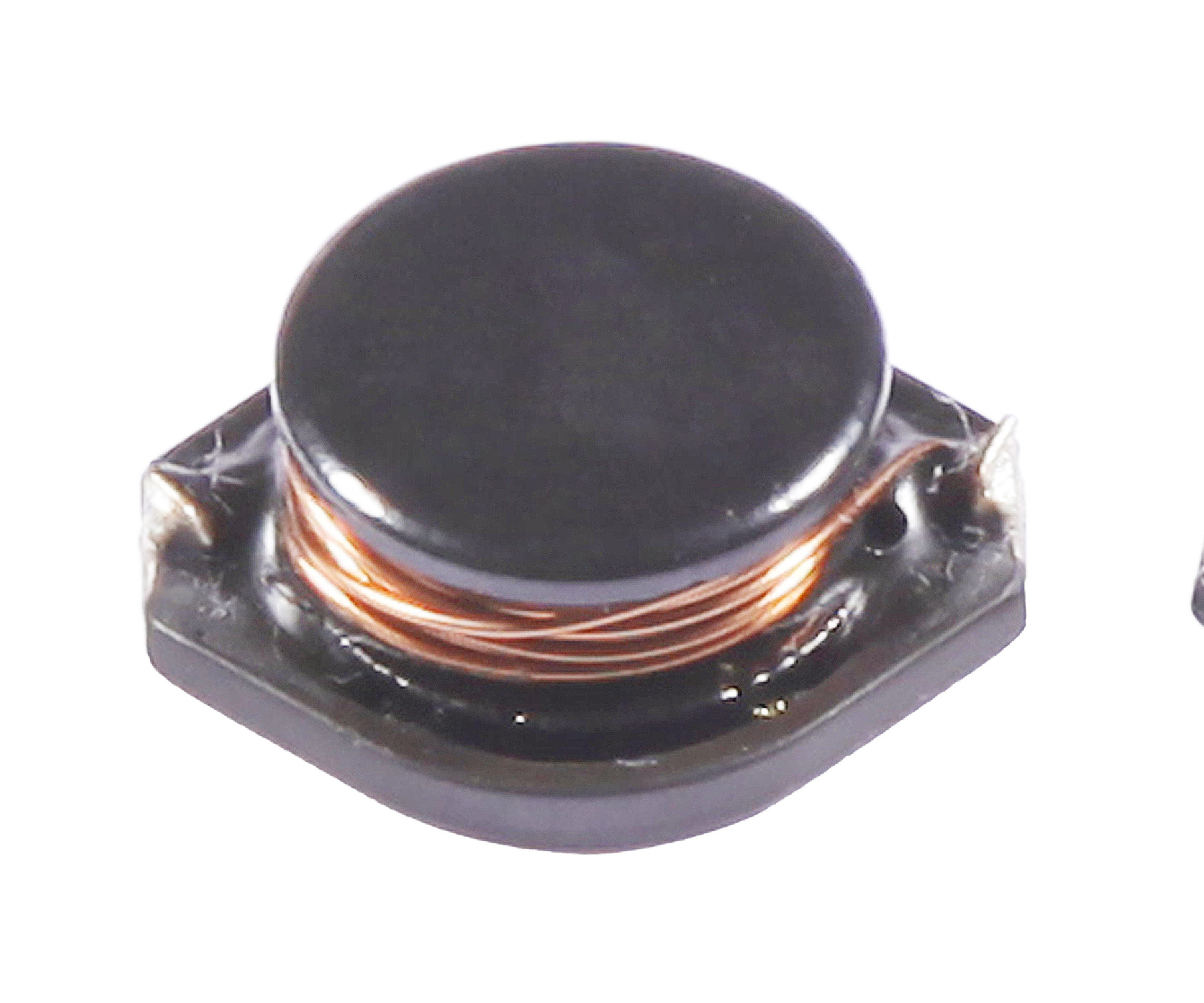

SP07-030012 3.0x3.0x1.2 1.5~10 64~395 4.1~1.45 2.9~1.15 ?
SP07-040020 4.0x4.0x2.0 0.22~10 11~180 22~3.50 9.5~2.35 ?

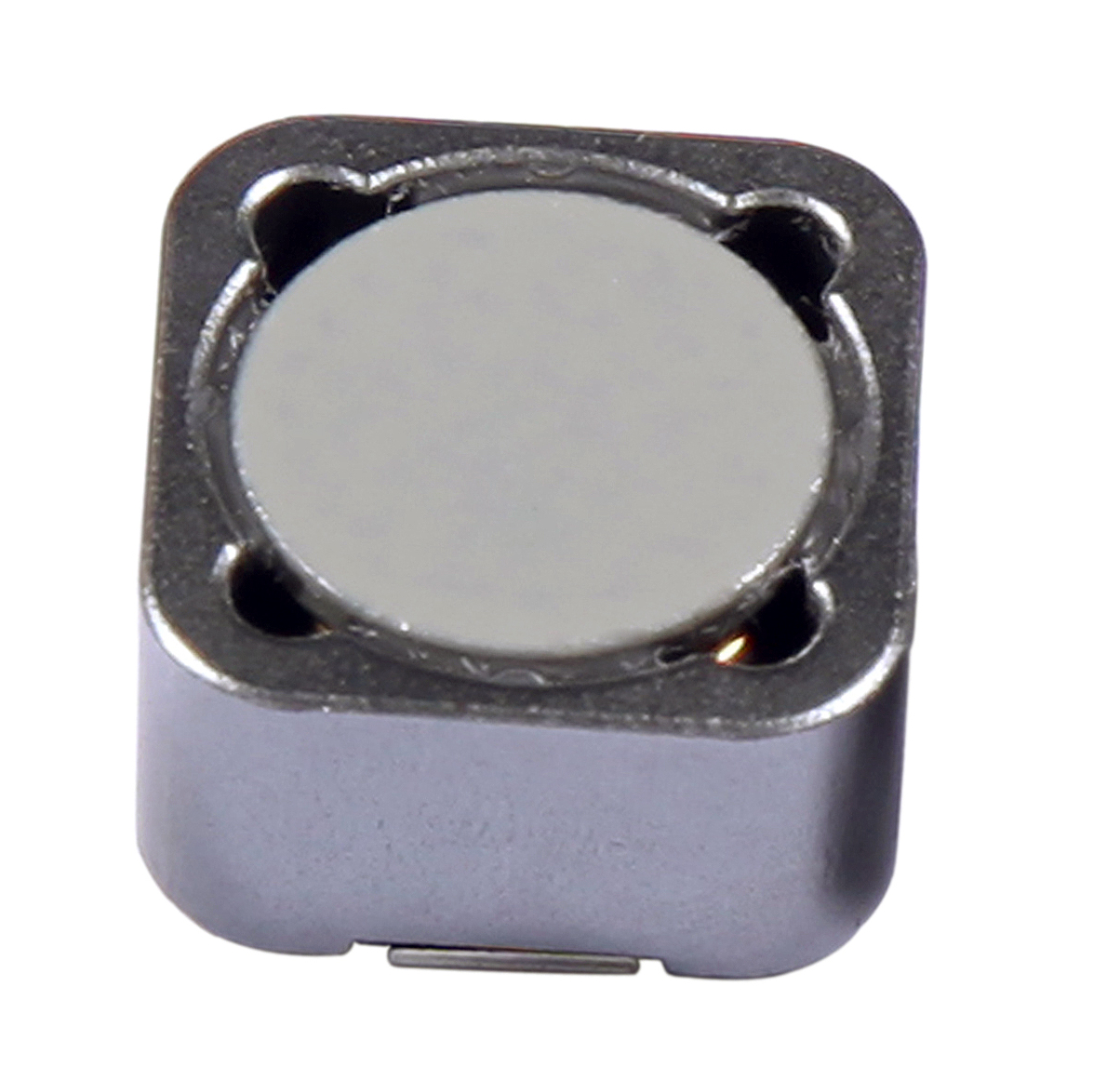

SP08-1304 12.95x9.4
x3.5		 10~1000 110~8400 2.4~0.1 2.0~0.05 ?
SP08-1305 12.95x9.4
x5.21		 1.0~1000 9.0~3000 9.0~0.3 6.8~0.3 ?
SP08-1311 12.95x9.4
x11.43		 10~1000 40~2000 8.0~0.8 3.5~0.10 ?
SP08-1907 18.54x15.24
x7.11		 1.0~1000 9.0~1800 20~1.0 8.6~0.56 ?
SP09-8028 8.0x8.0x3.1 2.5~220 22~1120 5.0~0.55 4.8~0.50 ?
SP09-8038 8.0x8.0x4.0 1.8~100 15.6~410 7.0~1.05 6.8~0.88 ?
SP09-8043 8.0x8.0x4.5 1.2~100 12.2~310 8.0~1.3 6.2~0.8 ?
SP09-8058 8.0x8.0x6.0 2.8~100 15~175 4.7~0.8 6.9~1.4 ?
SP10-060028 6.2x6.2x3.0 4.7~100 36~620 1.6~0.42 2.5~0.64 ?
SP10-060045 6.2x6.2x4.8 1.5~22 16~82 4.0~1.1 4.1~1.8 ?
SP10-070032 7.2x7.2x3.4 3.3~1000 23~4780 1.9~0.13 1.9~0.13 ?
SP10-070045 7.2x7.2x4.8 3.3~1000 20~2280 2.5~0.14 2.3~0.25 ?
SP10-101045 10.4x10.4
x4.8		 3.3~1500 16~3400 4.9~0.22 3.7~0.26 ?
SP10-101065 10.4x10.4
x6.8		 1.5~22 7~45 10.7~2.7 6.8~2.4 ?
SP10-125065 12.8x12.8
x6.85		 2.0~150 11.7~273 10~1.0 6.2~1.2 ?
SP11-130051 9.4x12.95
x5.08		 1.0~47 21~472 5.6~1.0 5.0~0.8 ?
SP11-185076 15.24x18.54
x7.62		 10~1000 40~2010 8.0~0.8 3.9~0.53 ?
SP12-1508 15x15x8.6 10~1000 14~990 14.7~1.4 7.4~0.86 ?
SP12-1514 15x15x14.5 2.5~1000 7.0~625 30.5~1.63 7.8~0.77 ?
SP13-2816A 27.9x27.9
x15.9		 1.5~33 1.65 100~2.0 30 ?
SP13-2816B 27.9x27.9
x15.9		 2.2~33 2.05 100~4.0 30 ?
SP13-2820A 27.9x27.9
x20		 3.3~470 2.75~88 87~4.3 31~4.5 ?

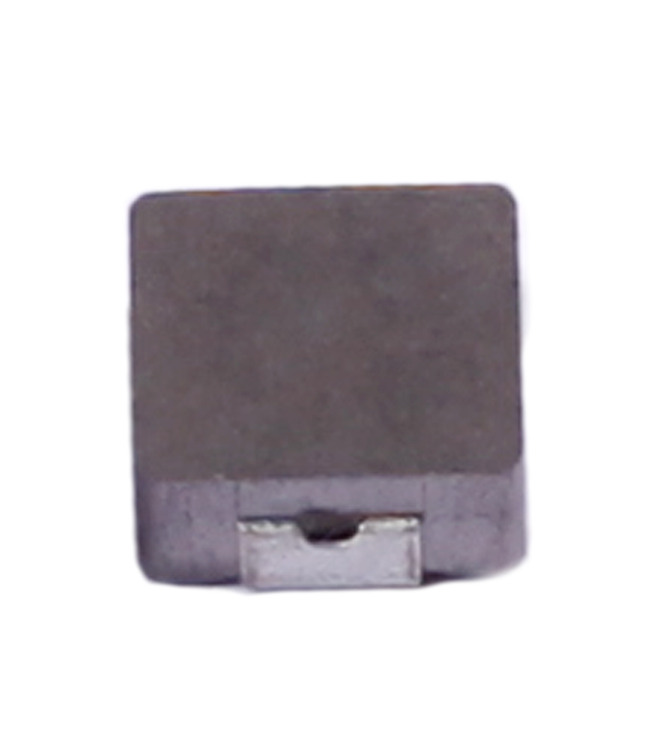

SP14-057018 5.4x5.2x1.8 0.47~10 9.0~155 15.5~3.0 10.5~2.5 ?
SP14-057030 5.4x5.2x3.0 0.10~10 3.0~125 33.0~3.5 25.0~3.2 ?
SP14-070024 7.0x6.6x2.4 0.22~22 3.0~240 34.0~2.5 21.0~2.0 ?
SP14-070030 7.0x6.6x3.0 0.22~33 3.0~310 34.0~2.5 24.0~2.0 ?
SP14-070040 7.0x6.6x4.0 0.22~22 1.8~125 35.0~4.0 33.0~3.5 ?
SP14-138040 13.3x12.6
x4.0		 0.68~4.7 3.5~14.5 47.0~18.0 28.0~13.0 ?
SP14-138050 13.3x12.6
x5.0		 0.68~47 1.55~130 46.5~5.0 33.0~3.0 ?
SP14-138060 13.3x12.6
x6.0		 4.7~150 9.0~350 24.0~2.7 20.0~2.0 ?

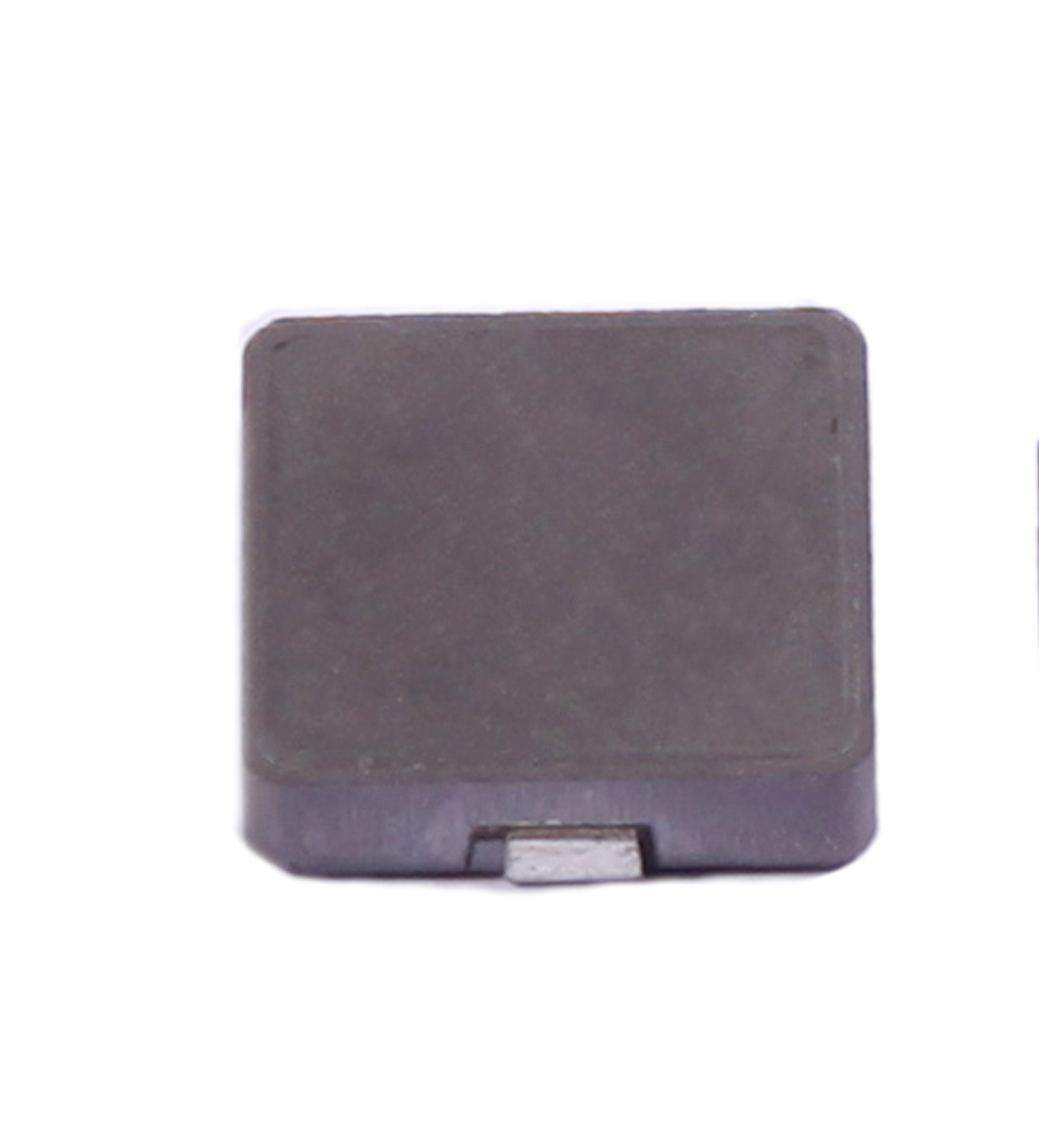

SP15-037012 3.4x3.0x1.2 0.12~10 5.5~310 14.0~1.2 8.0~0.8 ?
SP15-037020 3.4x3.0x2.0 0.22~4.7 10.0~158 13.0~2.8 8.0~2.0 ?
SP15-047012 4.4x4.0x1.2 0.33~3.3 14.5~111 12.0~3.9 8.0~2.4 ?
SP15-047020 4.4x4.0x2.0 0.22~22 8.0~460 17.0~1.5 12.0~1.0 ?
SP16-2010A 2.0x1.6x1.0 0.24~2.2 24.0~197 4.3~1.6 3.5~1.4 ?
SP16-2010B 2.0x1.6x1.0 0.24~2.2 20.5~163 5.4~1.6 4.2~1.6 ?
SP16-2012A 2.0x1.6x1.2 0.24~2.2 21.0~186 4.8~1.65 4.0~1.35 ?
SP16-2012B 2.0x1.6x1.2 0.24~2.2 19.0~144 5.6~1.65 4.4~1.6 ?
SP16-2510A 2.5x2.0x1.0 0.22~2.2 18.0~121 6.0~2.1 5.22~1.62 ?
SP16-2510B 2.5x2.0x1.0 0.22~2.2 17.0~105 7.0~2.2 5.5~1.8 ?
SP16-2512A 2.5x2.0x1.2 0.22~2.2 15.0~105 7.0~2.2 6.2~2.0 ?
SP16-2512B 2.5x2.0x1.2 0.22~2.2 13.0~90 7.0~2.3 8.0~2.0 ?

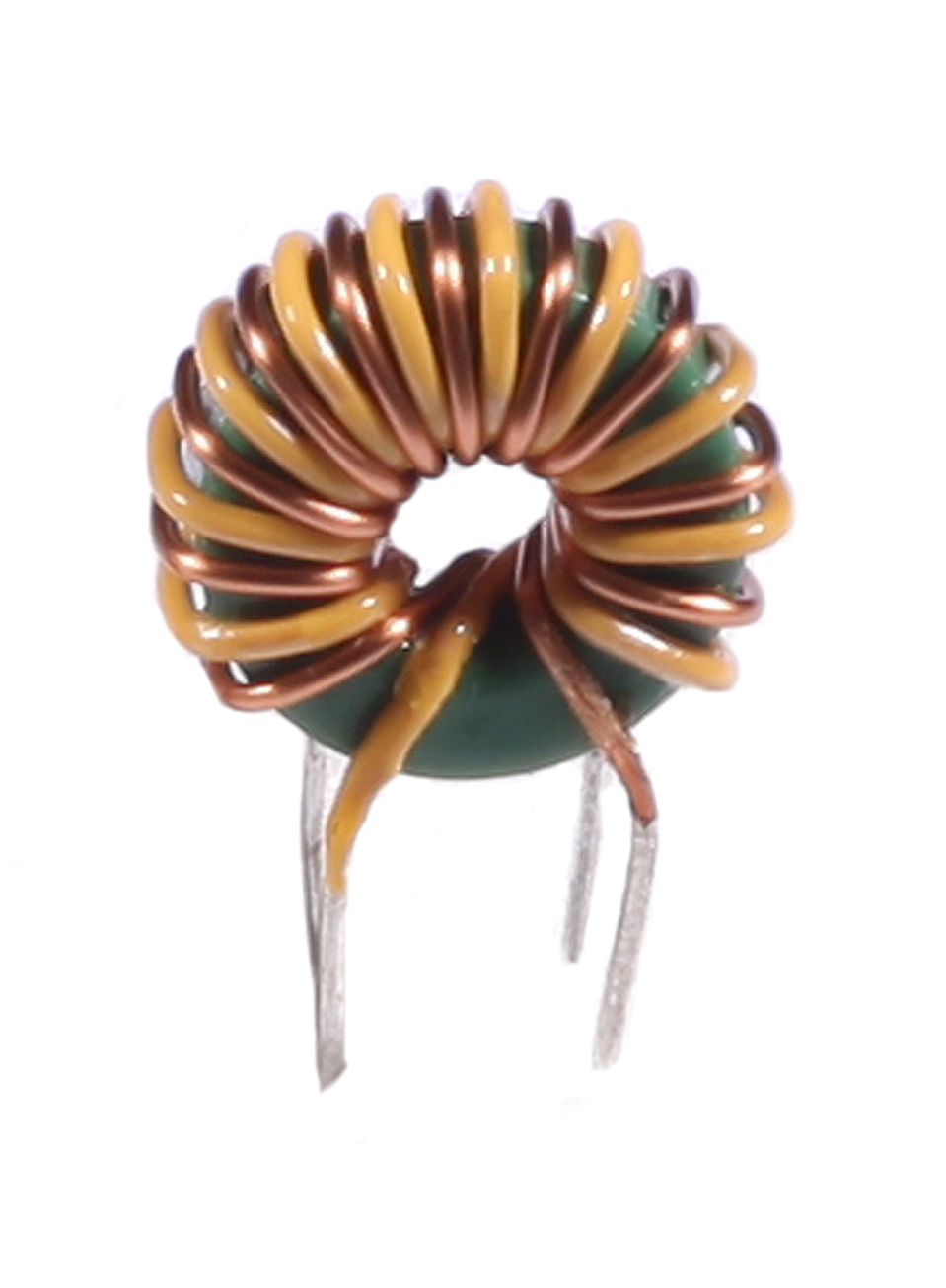

DP01-1721 16.8x21.3 10~560 8.2~471 28~3.7 9.0~0.8 ?
DP01-2122 21.0x21.5 10~2200 7.0~1067 33~2.2 11.4~0.8 ?
DP01-2627 26.0x27.0 47~4700 18~1429 25~2.5 9.0~1.0 ?
DP01-4128 40.5x28.0 47~15000 15~3004 40~1.9 14.4~1.3 ?
DP01-4138 40.5x38.0 220~15000 34~1750 21.5~2.6 13.5~1.8 ?
DP01-5038 50.0x38.0 680~47000 76.5~5849 14.0~1.6 11.4~1.4 ?

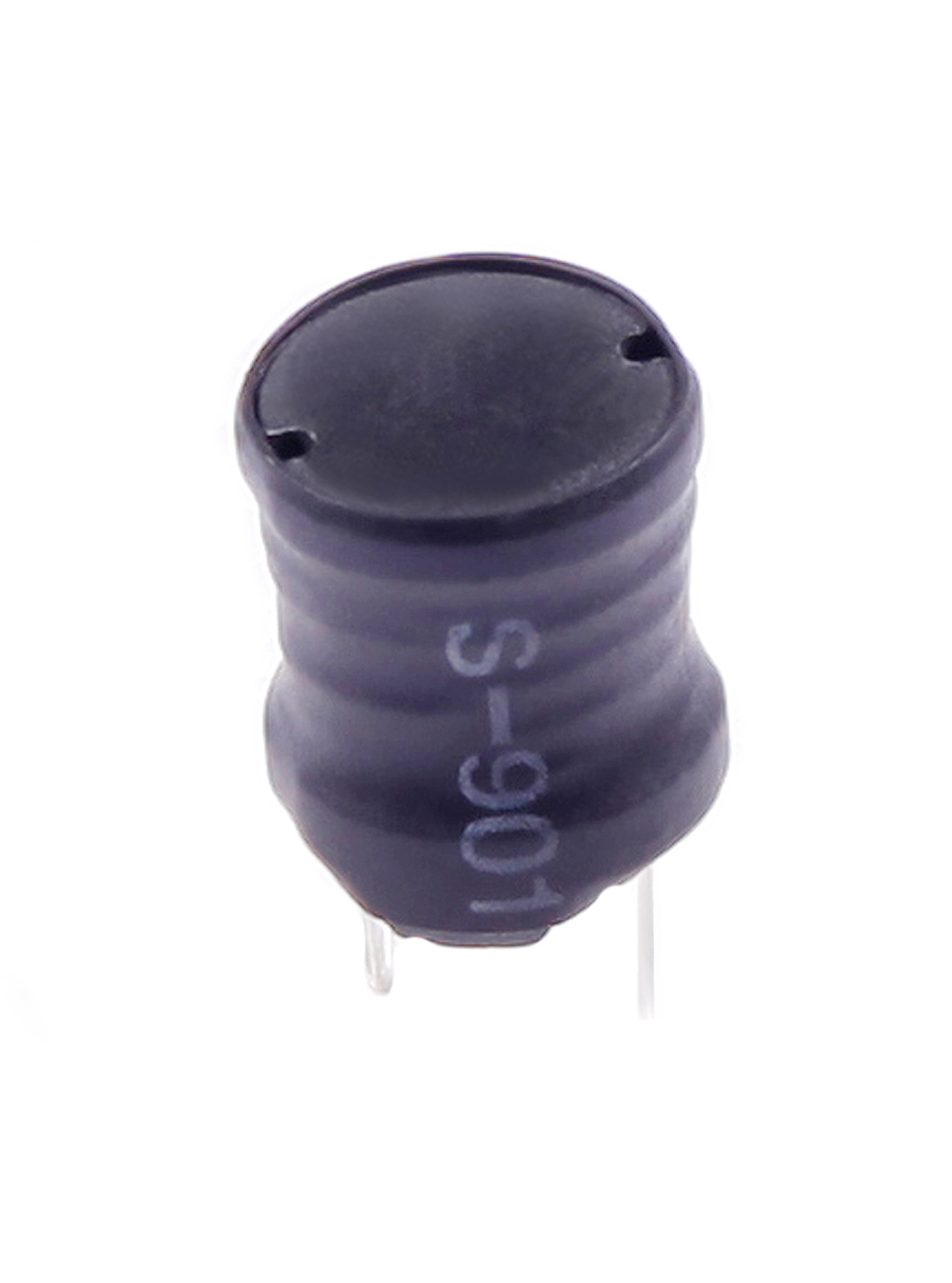

DP02-0609 6.0x8.5 3.3~1000 20~5626 6.0~0.35 5.7~0.35 ?
DP02-0807 7.5x7.0 3.3~1000 16~3400 5.5~0.34 5.8~0.4 ?
DP02-0908 9.0x8.0 3.3~1000 18~3800 12.3~0.72 5.5~0.38 ?
DP02-0910 9.0x10 3.3~1000 13~2050 12~0.72 8.1~0.6 ?
DP02-1014 9.5x13.5 3.3~1000 9~1469 11.7~0.7 8.8~0.74 ?
DP02-1211 11.5x11 3.3~1000 9~1525 14~0.84 9.7~0.72 ?
DP03-035130 13.5x3.8 2.3? 9.0? ? ? 5.0?
DP03-035170 17.5x3.8 4.4? 11.8? ? ? 3.5?
DP03-035190 19.5x3.8 5.9? 13.9? ? ? 2.5?
DP03-040130 13.5x4.3 2.2? 9.4? ? ? 6.5?
DP03-040160 16.5x4.3 4.1? 12.6? ? ? 4.7?
DP03-040190 19.5x4.3 6.0? 14.4? ? ? 3.7?
DP03-045130 13.5x5.0 2.3? 9.9? ? ? 9.0?
DP03-045160 16.5x5.0 4.6? 14.3? ? ? 6.5?
DP03-045180 18.5x5.0 6.2? 16.6? ? ? 5.0?
DP03-050130 13.5x5.5 2.3? 10.5? ? ? 10.0?
DP03-050160 16.5x5.5 4.5? 14.7? ? ? 8.0?
DP03-050190 19.5x5.5 6.7? 17.3? ? ? 6.5?
DP03-060150 15.5x6.5 2.9? 9.4? ? ? 13.0?
DP03-060180 18.5x6.5 4.4? 10.2? ? ? 10.0?
DP03-060200 20.5x6.5 5.9? 12.0? ? ? 8.2?
DP03-077200 20.5x8.2 3.7? 5.9? ? ? 12.0?
DP03-085250 25.5x9.0 8.0? 9.9? ? ? 11.0?
DP03-097250 25.5x10.2 1.9? 1.8? ? ? 24.0?
DP03-125300 30.5x13.0 4.7? 3.0? ? ? 25.0?

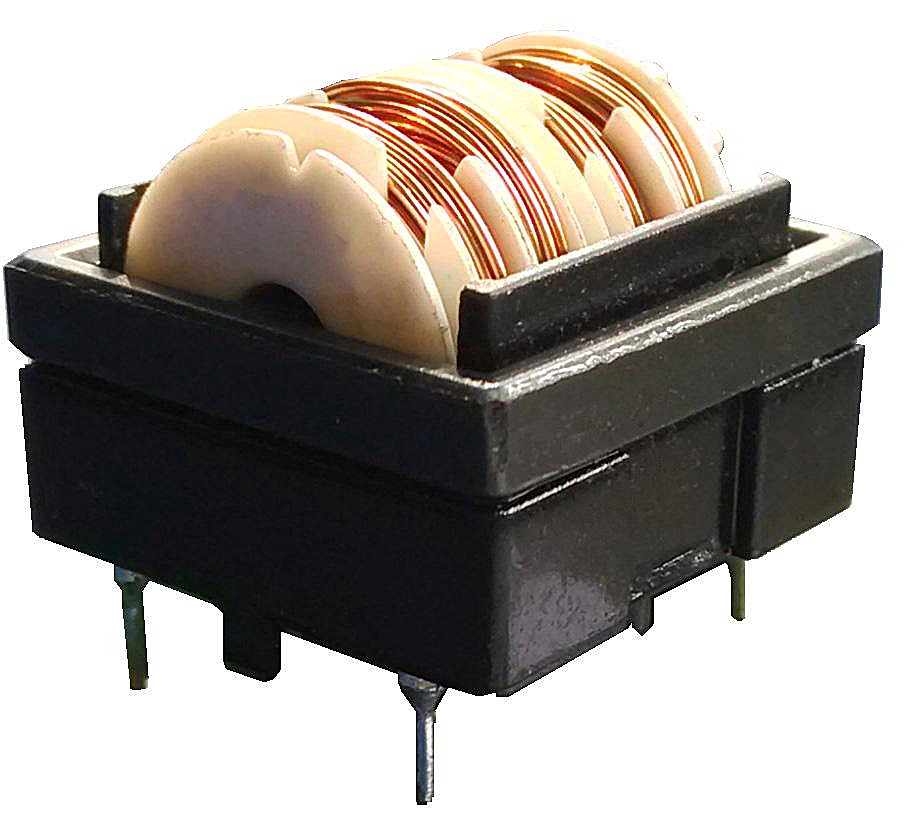

DCM01-1921 19x17x21 700~13100 76~1460 ? ? 2.3~0.5
DCM01-2328 23x19.5x28 2100~22000 103~1100 ? ? 2.2~0.6
DCM02-2219 22x22x18.5 1800~47000 105~2870 ? ? 2.0~0.3
DCM02-2622 26x26x21.5 2300~62000 87~2015 ? ? 2.4~0.3
DCM03-2417 23.62x22.35
x17.02		 47~68000 16~9690 ? ? 3.5~0.13
DCM04-1005 12.5x8.0
x12.5		 3.6~240 8~130 ? ? 1.7~0.45

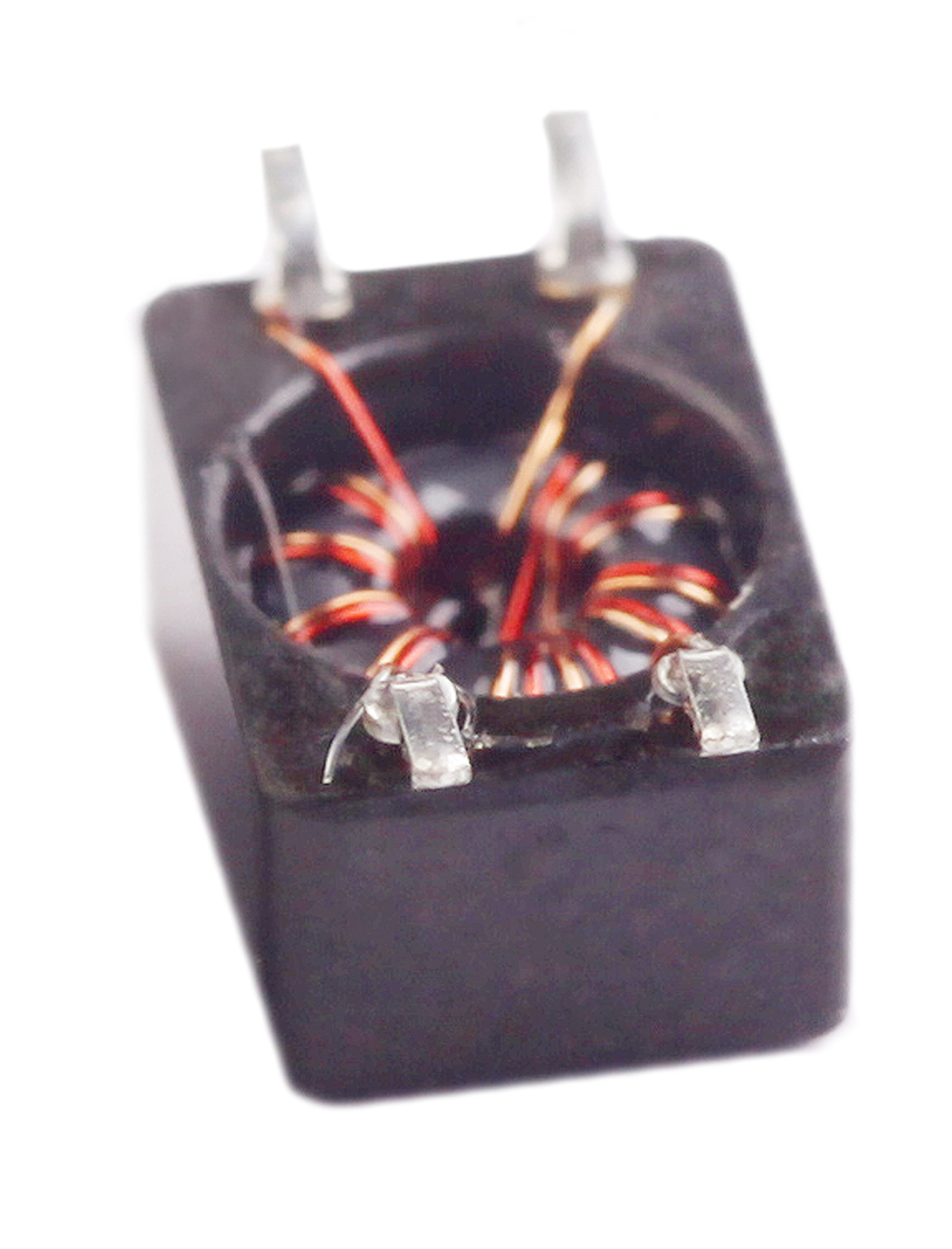

SCM01-1005 9.5x5.65
x4.9		 11~4700 120~700 ? ? 0.7~0.2
SCM02-2010 17.0x19.6
x9.91		 590~1470 21~80 ? ? 5.6~2.8
