Russian DCM02-2622 Type

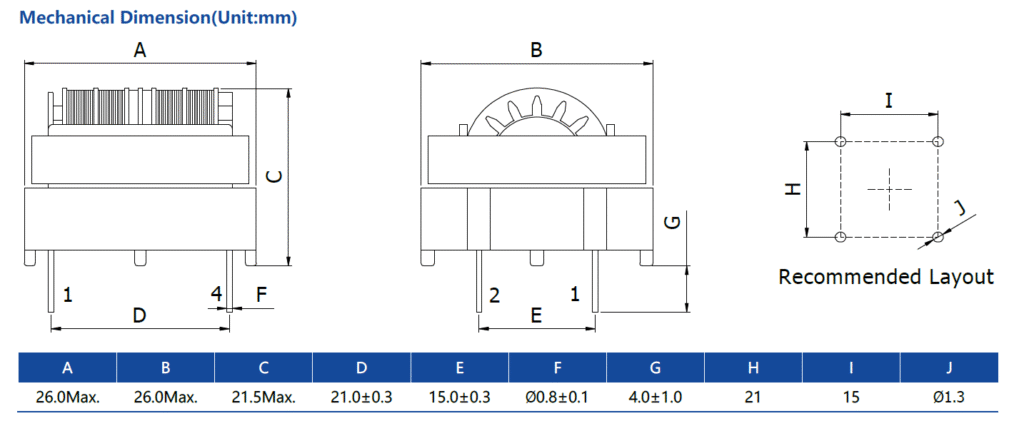

产品尺寸
产品参数
| Part Number | Inductance L0(uH)Min. | DCR | Rated Current | Rated Voltage | Hi-Pot (Coil - Coil) | |
|---|---|---|---|---|---|---|
| (Ω)Max. | (A)Max. | (V/ac)Max. | ||||
| DCM02-26220620Y | 62 | 2.015 | 0.3 | 300 | 2.5KV AC/2mA/3S |  |
| DCM02-26220430Y | 43 | 1.39 | 0.5 | 300 | 2.5KV AC/2mA/3S | |
| DCM02-26220170Y | 17 | 0.55 | 0.9 | 300 | 2.5KV AC/2mA/3S | |
| DCM02-26220110Y | 11 | 0.36 | 1.1 | 300 | 2.5KV AC/2mA/3S | |
| DCM02-26220064Y | 6.4 | 0.22 | 1.5 | 300 | 2.5KV AC/2mA/3S | |
| DCM02-26220035Y | 3.5 | 0.115 | 2 | 300 | 2.5KV AC/2mA/3S | |
| DCM02-26220023Y | 2.3 | 0.087 | 2.4 | 300 | 2.5KV AC/2mA/3S | |
