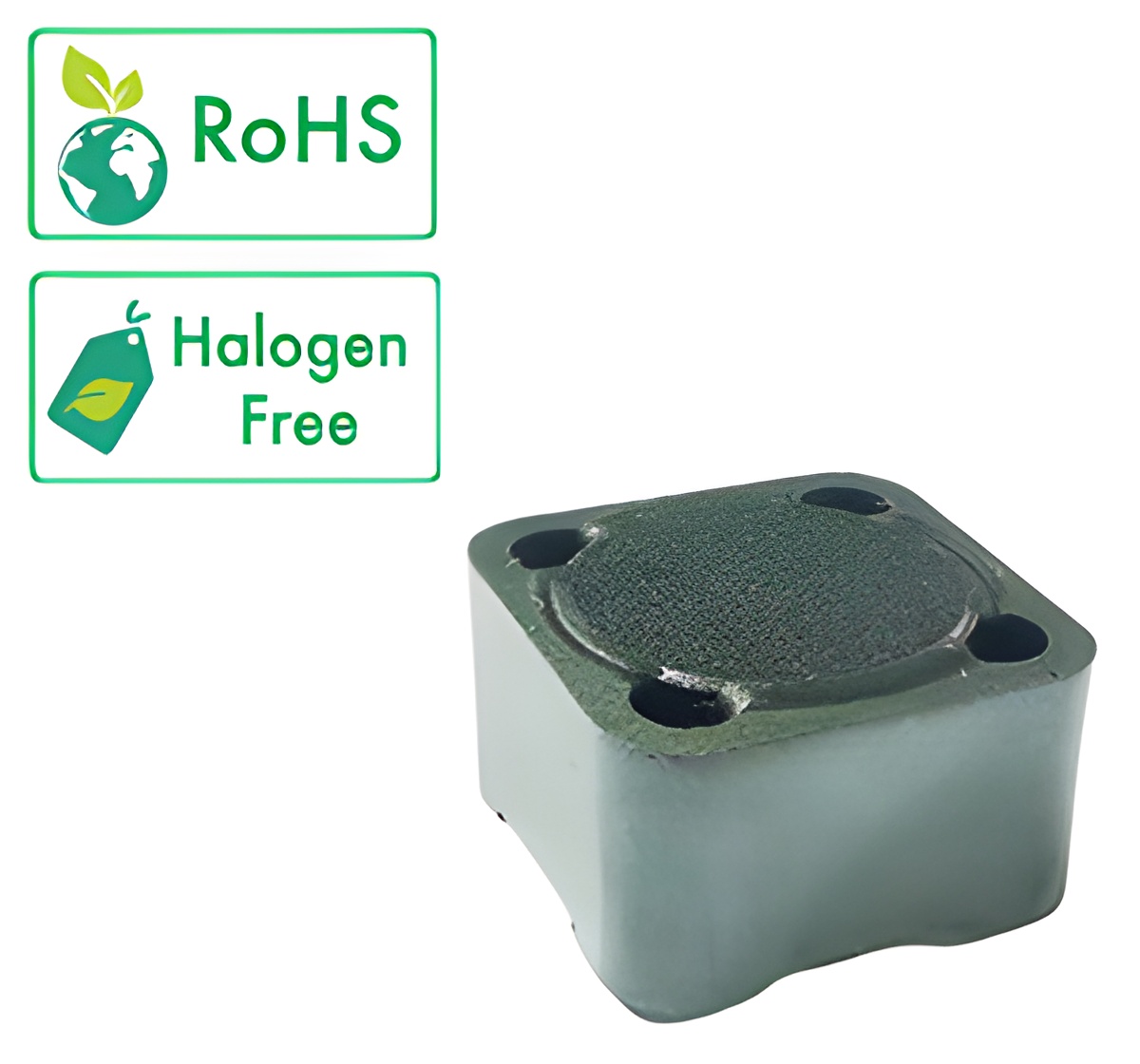

Russian SP05-1210 Type

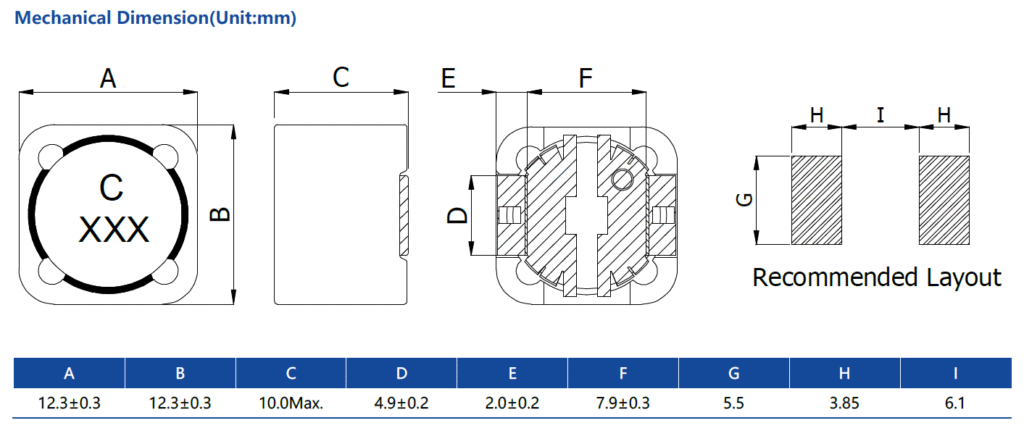

产品尺寸
产品参数
| Part Number | Inductance L0(uH) | DCR | Isat | Irms | SRF (MHz)Typ | ||
|---|---|---|---|---|---|---|---|
| (mΩ)Typ. | (mΩ)Max. | (A)Typ. | (A)Typ. | ||||
| SP05-12101R0M | 1.0±20% | 4 | 6 | 30 | 13 | 120 |  |
| SP05-12102R2M | 2.2±20% | 5 | 6.5 | 24 | 11.5 | 65 | |
| SP05-12103R5M | 3.5±20% | 6 | 9 | 19.5 | 11 | 45 | |
| SP05-12104R7M | 4.7±20% | 7 | 11 | 16 | 9.3 | 38 | |
| SP05-12106R8M | 6.8±20% | 9 | 14 | 15 | 8.4 | 23 | |
| SP05-1210100M | 10±20% | 13 | 21 | 13 | 7.1 | 21 | |
| SP05-1210150M | 15±20% | 21 | 26 | 9.5 | 6.5 | 17 | |
| SP05-1210220M | 22±20% | 23 | 28 | 8 | 5.3 | 10 | |
| SP05-1210270M | 27±20% | 30 | 40 | 7.1 | 4.6 | 8 | |
| SP05-1210330M | 33±20% | 37 | 45 | 6.5 | 4.2 | 8.5 | |
| SP05-1210390M | 39±20% | 44 | 56 | 6.2 | 4.1 | 6 | |
| SP05-1210470M | 47±20% | 46 | 60 | 5.5 | 3.8 | 6.5 | |
| SP05-1210680M | 68±20% | 69 | 89 | 4.4 | 3.2 | 5.5 | |
| SP05-1210820M | 82±20% | 91 | 105 | 4 | 2.8 | 4.5 | |
| SP05-1210101M | 100±20% | 100 | 110 | 3.8 | 2.5 | 4.3 | |
| SP05-1210151M | 150±20% | 151 | 200 | 3.3 | 2.1 | 3.5 | |
| SP05-1210221M | 220±20% | 193 | 300 | 2.7 | 1.8 | 2.7 | |
| SP05-1210271M | 270±20% | 248 | 330 | 2.6 | 1.6 | 2.5 | |
| SP05-1210331M | 330±20% | 363 | 430 | 2.1 | 1.5 | 2 | |
| SP05-1210471M | 470±20% | 437 | 560 | 1.85 | 1.4 | 1.8 | |
| SP05-1210681M | 680±20% | 660 | 825 | 1.6 | 1.1 | 1.5 | |
| SP05-1210821M | 820±20% | 815 | 1000 | 1.35 | 0.95 | 1.2 | |
| SP05-1210102K | 1000±10% | 930 | 1200 | 1.25 | 0.9 | 1 | |
| SP05-1210152K | 1500±10% | 1800 | 2300 | 1 | 0.8 | 0.9 | |
| SP05-1210222K | 2200±10% | 3250 | 3750 | 0.92 | 0.53 | 0.66 | |
